Original: $595.04
-65%$595.04
$208.26The Story

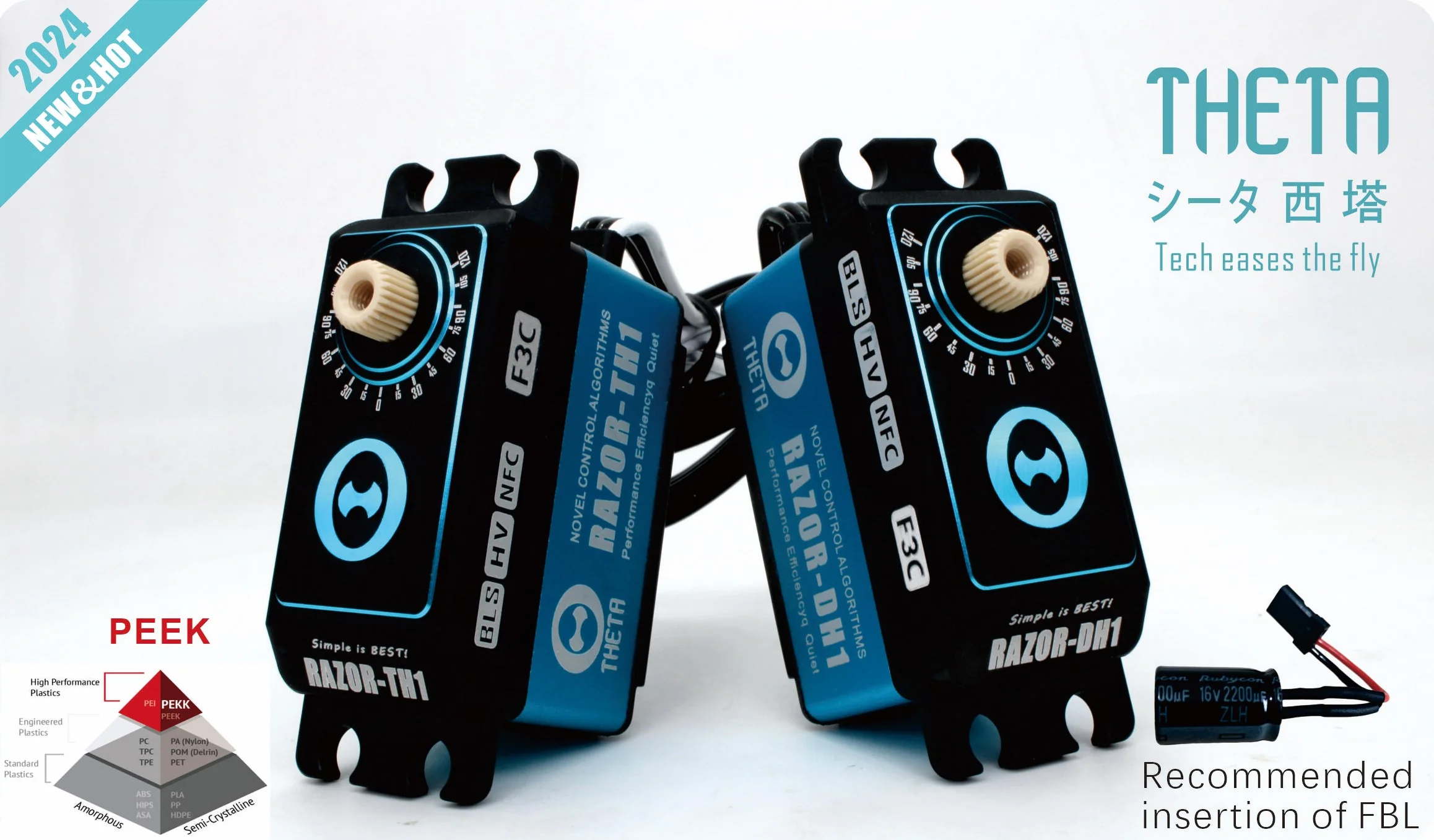

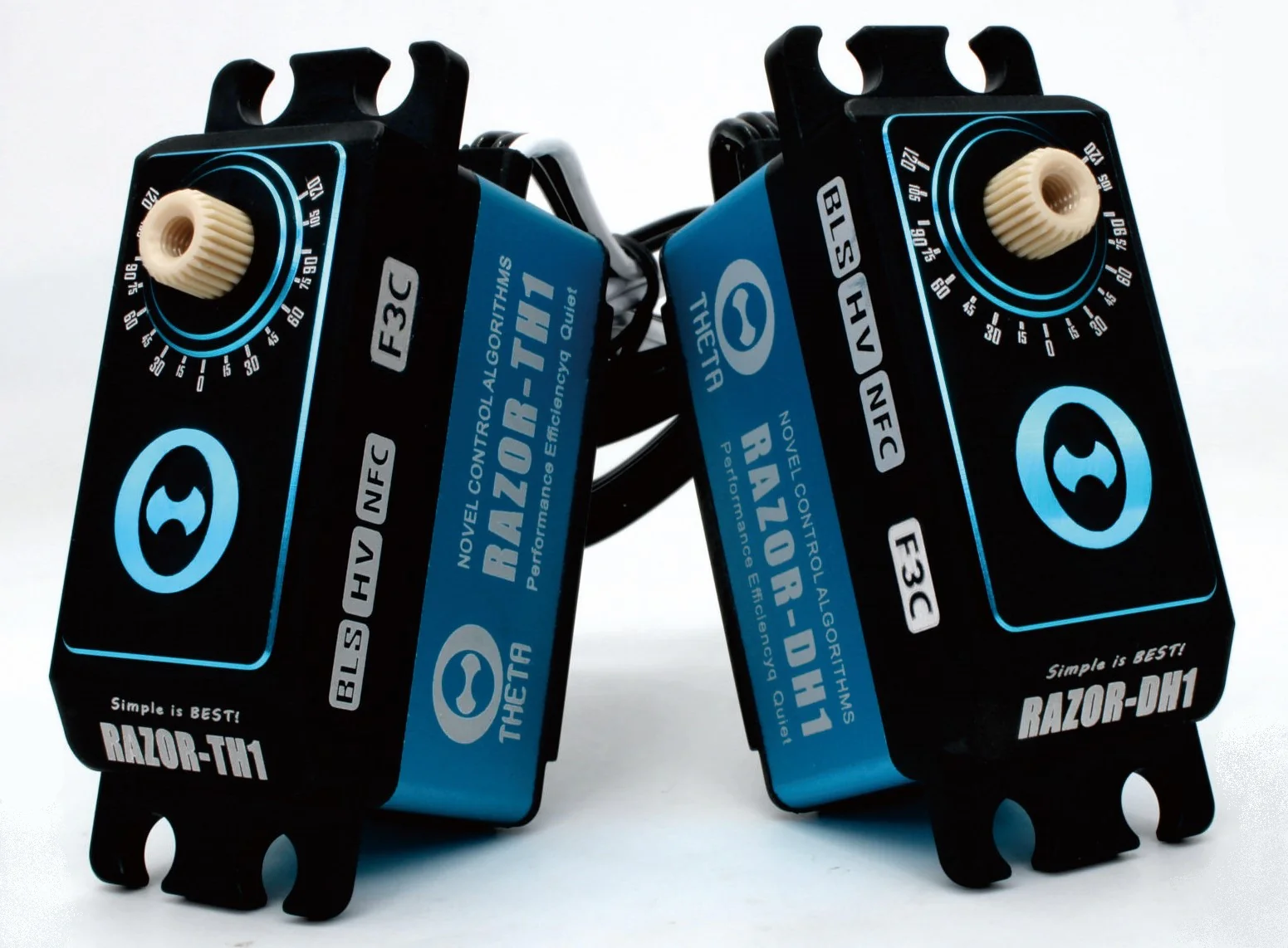

Theta Low Profile F3C Set DH1/TH1 PEEK TS-F3CLP
F3C LOW PROFILE brushless servo
Servo characteristics can be adjusted by NFC. Support CGY760R by default. Support 760us.
3 x RAZOR-DH1-F3C + 1 x RAZOR-TH1-F3C
Neutral pulse width: 1520us/760a (Wide band/narrow)
Frequency Range: 50~400Hz
Limit angle: 180±10° (500-2500μsec)
Operating travel: 90° (1000-2000μsec)
Rotating distance: Adjustable
Connector wire length: 200±5mm
Connector wire gauge: #22PVC
Dead band width: 1-4μsec
| Â Voltage | Current | DH1 Speed | DH1 Torque | TH1 Speed | TH1 Torque |
| 5.0V | 4.0A | 0.108s/60° | 26Kgf.cm | 0.087s/60° | 19Kgf.cm |
| 6.0V | 4.0A | 0.09s/60° | 28Kgf.cm | 0.072s/60° | 21Kgf.cm |
| 7.4V | 4.0A | 0.08s/60° | 31Kgf.cm | 0.064s/60° | 23Kgf.cm |
| 8.4V | 4.0A | 0.07s/60° | 34Kgf.cm | 0.056s/60° | 24Kgf.cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Theta Low Profile F3C Set DH1/TH1 PEEK TS-F3CLP
F3C LOW PROFILE brushless servo
Servo characteristics can be adjusted by NFC. Support CGY760R by default. Support 760us.
3 x RAZOR-DH1-F3C + 1 x RAZOR-TH1-F3C
Neutral pulse width: 1520us/760a (Wide band/narrow)
Frequency Range: 50~400Hz
Limit angle: 180±10° (500-2500μsec)
Operating travel: 90° (1000-2000μsec)
Rotating distance: Adjustable
Connector wire length: 200±5mm
Connector wire gauge: #22PVC
Dead band width: 1-4μsec
| Â Voltage | Current | DH1 Speed | DH1 Torque | TH1 Speed | TH1 Torque |
| 5.0V | 4.0A | 0.108s/60° | 26Kgf.cm | 0.087s/60° | 19Kgf.cm |
| 6.0V | 4.0A | 0.09s/60° | 28Kgf.cm | 0.072s/60° | 21Kgf.cm |
| 7.4V | 4.0A | 0.08s/60° | 31Kgf.cm | 0.064s/60° | 23Kgf.cm |
| 8.4V | 4.0A | 0.07s/60° | 34Kgf.cm | 0.056s/60° | 24Kgf.cm |
