The Story

Theta THS928B Micro Brushless Servo TS-THS928B

High voltage, High-Torque, MICRO BLS servo

1/12 Car

Aerobatic Airplanes

  • Steel Gear
  • Ultra Quiet
  • Energy Saving

Neitral pulse width: 1520us (wide band adjustable)
Frequency range: 50~800Hz
Limit angle: 140±10°(750-2250μsec)
Operating travel: 90°(1000-2000μsec)
Rotating Direction: CCW
Connector wire length: 190 ± 5mm
Connector wire gauge: #26PVC
Dead band width: Iμsec

 Speed Torque
0.077sec/60° @ 6.0V 7.5kg-cm @ 6.0V
0.066sec/60° @ 7.4V 9.0kg-cm @ 7.4V
0.056sec/60° @ 8.4V 10.5kg-cm @ 8.4V

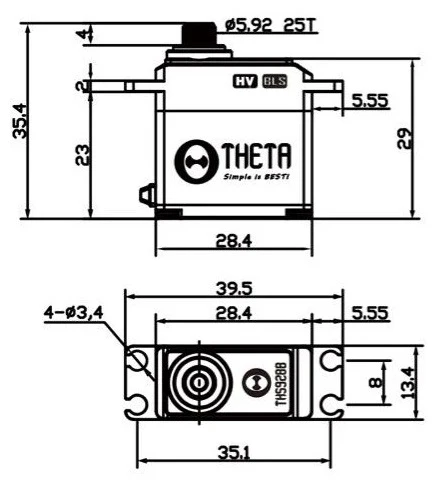

Theta THS928B Micro Brushless Servo 10.5kg/0.056@8.4V TS-THS928B - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

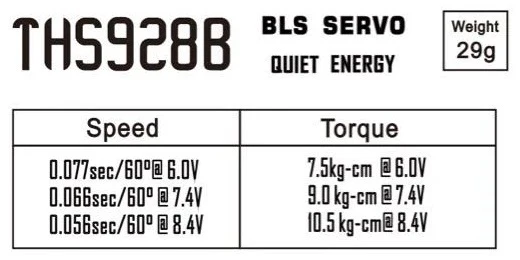

Theta THS928B Micro Brushless Servo 10.5kg/0.056@8.4V TS-THS928B - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

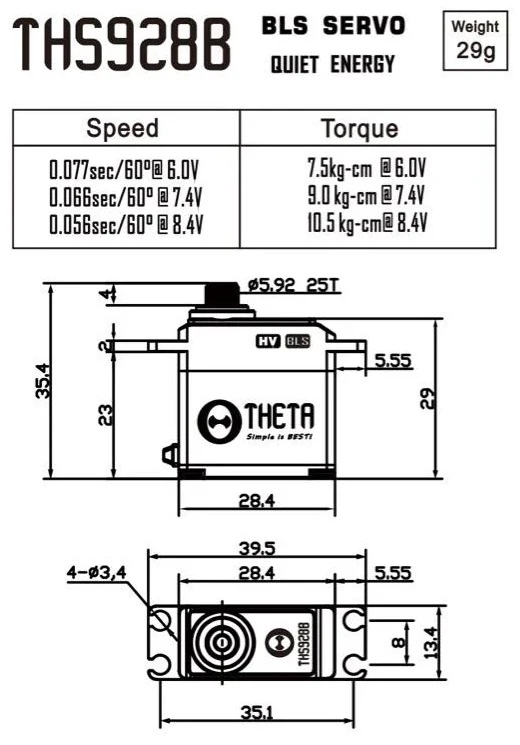

Theta THS928B Micro Brushless Servo 10.5kg/0.056@8.4V TS-THS928B - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Theta THS928B Micro Brushless Servo TS-THS928B

High voltage, High-Torque, MICRO BLS servo

1/12 Car

Aerobatic Airplanes

  • Steel Gear
  • Ultra Quiet
  • Energy Saving

Neitral pulse width: 1520us (wide band adjustable)
Frequency range: 50~800Hz
Limit angle: 140±10°(750-2250μsec)
Operating travel: 90°(1000-2000μsec)
Rotating Direction: CCW
Connector wire length: 190 ± 5mm
Connector wire gauge: #26PVC
Dead band width: Iμsec

 Speed Torque
0.077sec/60° @ 6.0V 7.5kg-cm @ 6.0V
0.066sec/60° @ 7.4V 9.0kg-cm @ 7.4V
0.056sec/60° @ 8.4V 10.5kg-cm @ 8.4V
