The Story
UniLight 17mm Hemisphere Strobe Light 9Wx2 RND17X-090x2-WE

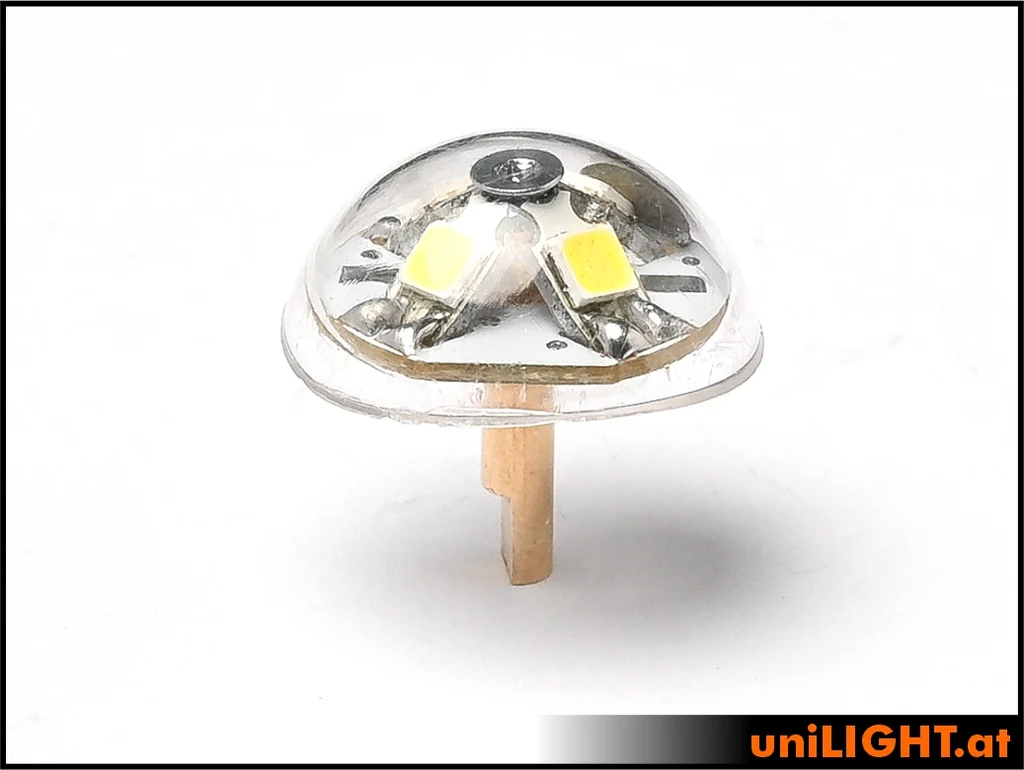

Hemisphere light in dome shape, powerful illumination in the entire hemisphere with only 17mm diameter!
Dome light in a special flat design to achieve the full beam angle in half space (>2Ï€ sr). Without further cooling aluminium construction can only be operated with short strobe signals.
Electrical: 9W reference power with x2 technology,
Voltage: 0.75A, 8V/12V
Beam angle: 360°
Light intensity: ~240 lumens RED
Light intensity: ~650 lumens WHITE
Light intensity: ~450 lumens GREEN
Dimension: D17x6mm
Weight: 2g (without cable)
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Function: Strobe |
| Dimensions: 17mm |

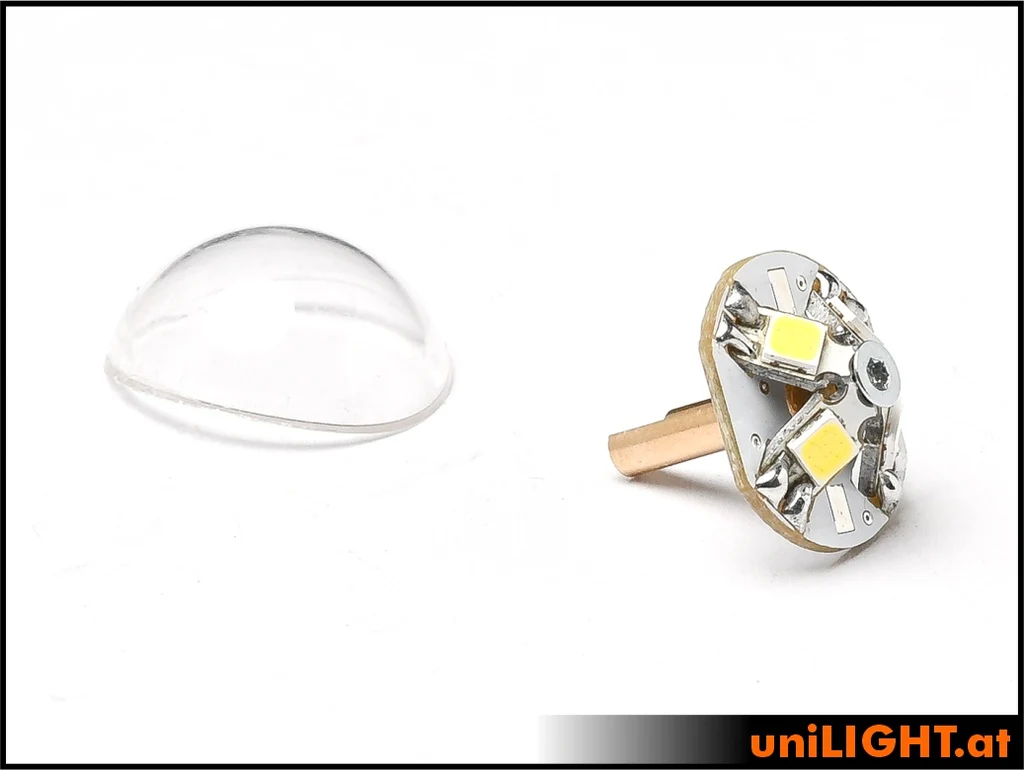

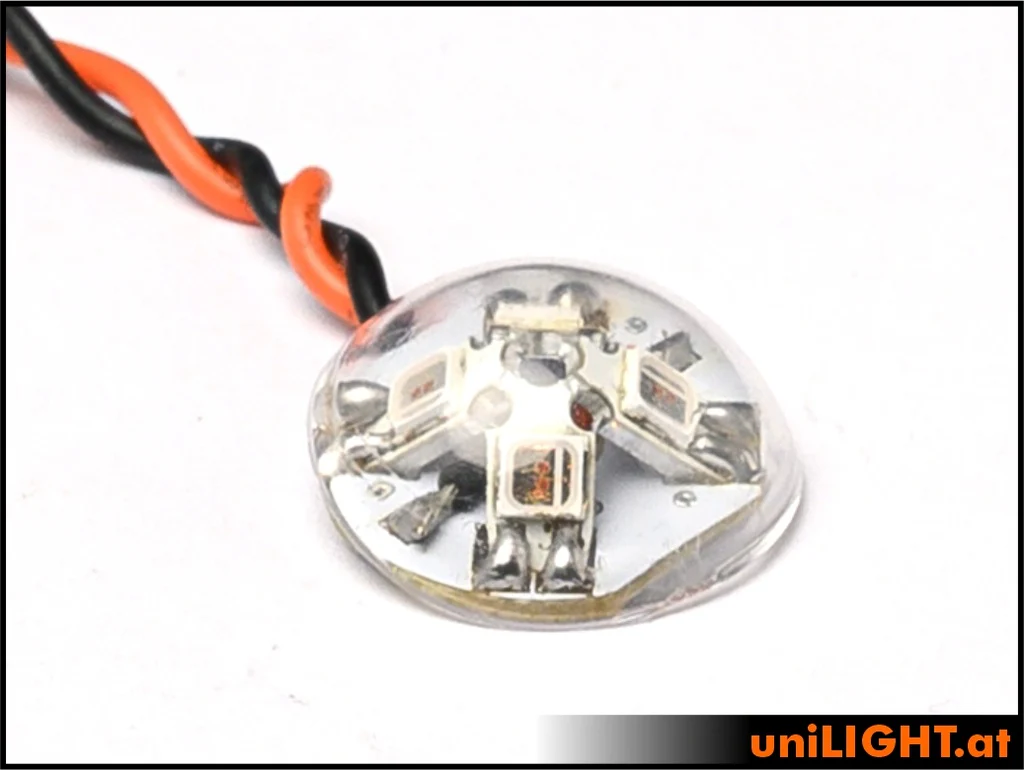

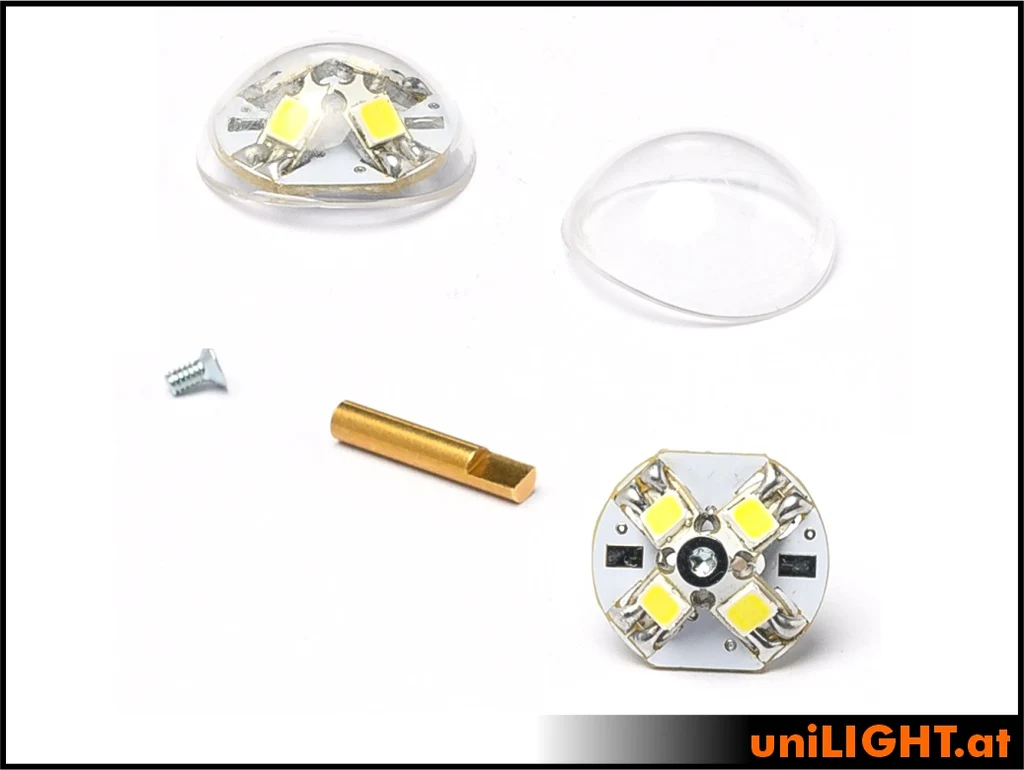

Equipped with 1m silicone cable and pre-configured resistor for 2S. The optional cooling pin is attached to the LED structure with the included screw and a drop of superglue.
The cap already has a moulding for direct mounting on a round fuselage back and can be further adjusted with a knife or scissors. The option cooling bolt is centred with a screw and secured with a bit CA glue.
The standard chip configuration allows a duty cycle of 10-15%
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
UniLight 17mm Hemisphere Strobe Light 9Wx2 RND17X-090x2-WE
Hemisphere light in dome shape, powerful illumination in the entire hemisphere with only 17mm diameter!
Dome light in a special flat design to achieve the full beam angle in half space (>2Ï€ sr). Without further cooling aluminium construction can only be operated with short strobe signals.
Electrical: 9W reference power with x2 technology,
Voltage: 0.75A, 8V/12V
Beam angle: 360°
Light intensity: ~240 lumens RED
Light intensity: ~650 lumens WHITE
Light intensity: ~450 lumens GREEN
Dimension: D17x6mm
Weight: 2g (without cable)
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Function: Strobe |
| Dimensions: 17mm |
Equipped with 1m silicone cable and pre-configured resistor for 2S. The optional cooling pin is attached to the LED structure with the included screw and a drop of superglue.
The cap already has a moulding for direct mounting on a round fuselage back and can be further adjusted with a knife or scissors. The option cooling bolt is centred with a screw and secured with a bit CA glue.
The standard chip configuration allows a duty cycle of 10-15%
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
