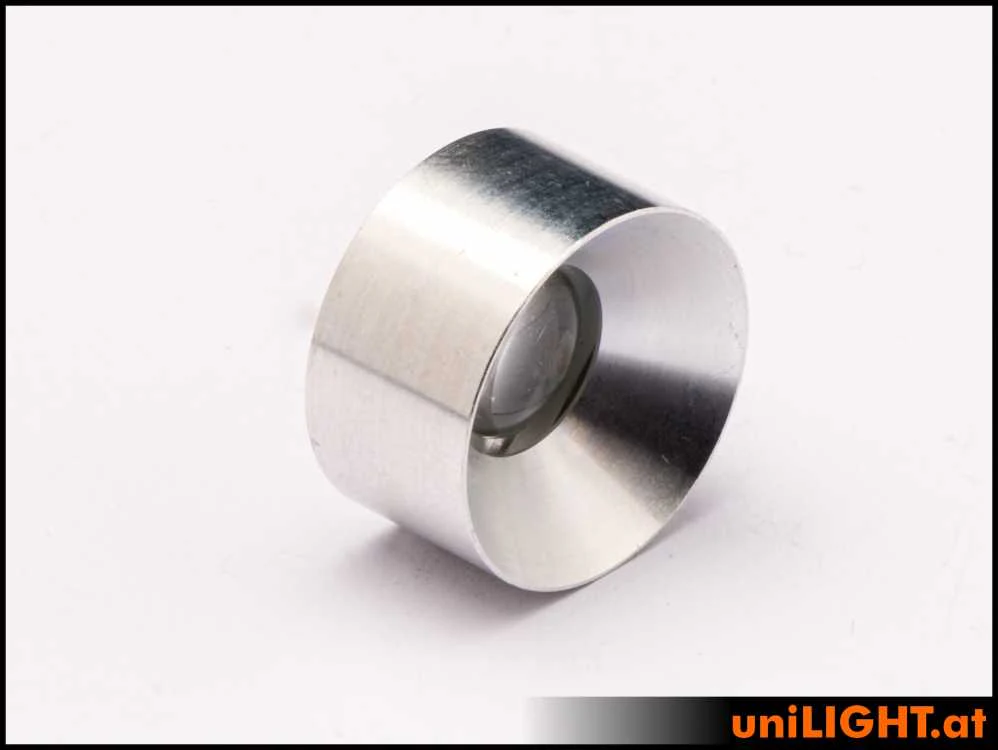

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White
HomeStore

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White

$8.61

Original: $24.59

-65%
UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White—

$24.59

$8.61

The Story

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White SPOT19X-026x2-WE

New ultrapower headlights with integrated optics and approx. 220 lumen output, absolute novelty in terms of brightness thanks to high-performance COB chip technology in an extremely compact design. CNC-manufactured aluminum reflector with 19mm diameter, optimized for performance and weight for use as a landing gear headlight or in areas with very little installation depth. Without sufficient air for cooling, the headlight may only be in operation for approx. 3 minutes; it functions as a landing light. In addition, additional ventilation or mounting on a metallic surface (landing gear leg, bracket) must be provided.

These headlights already have optics built in. This is why they are available as standard with a beam angle of approx. 90 ° or in the directional version with 45 °

Direct operation with 2S (8V) Lipo, with 3S (12V) the enclosed additional resistor must be soldered in. Make sure there is enough cooling air during operation, if necessary check the working temperature to below 65-70 ° C.

Performance: 2.6Wx2 reference power
Overtemperature protection: switch-off and clocking of the light at 65-70°
Voltage: 2S/8V (3S/12V), use enclosed resistor additionally for 12V!
Electricity: 0.2A
Beam angle: ~45° or 90°
Light intensity: ~220 Lumen WHITE
Light intensity: ~220 Lumen WARMWHITE
Dimension: D19x10mm
Weight: 9g (without cable)

Ready to use with 1m connection cable for 3S operation

With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.


The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!

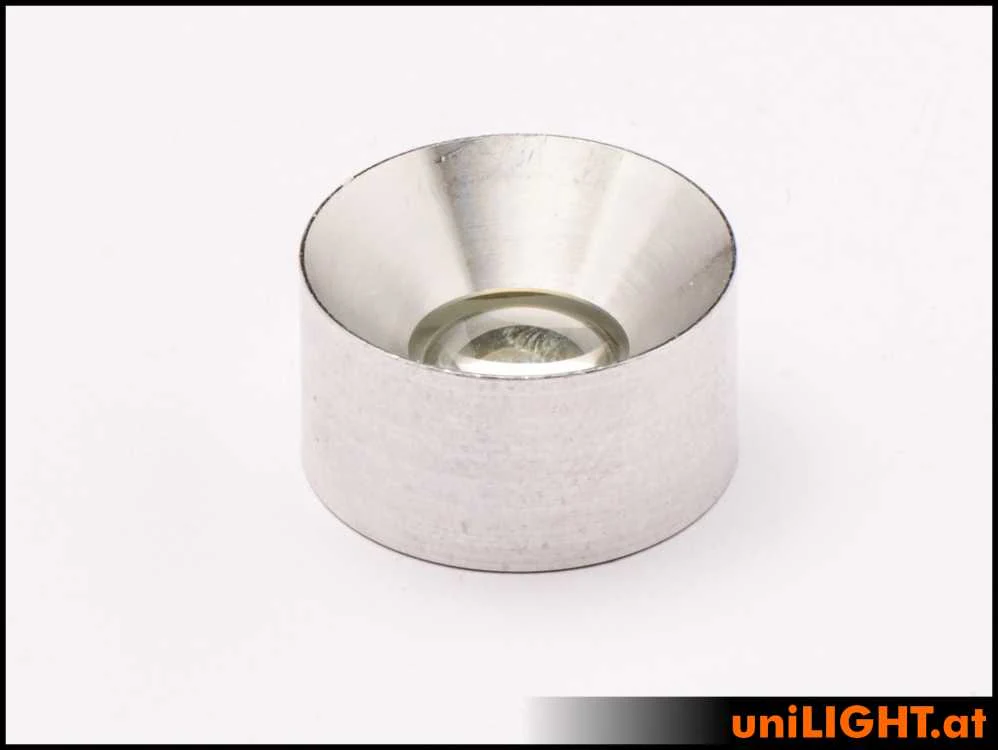

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

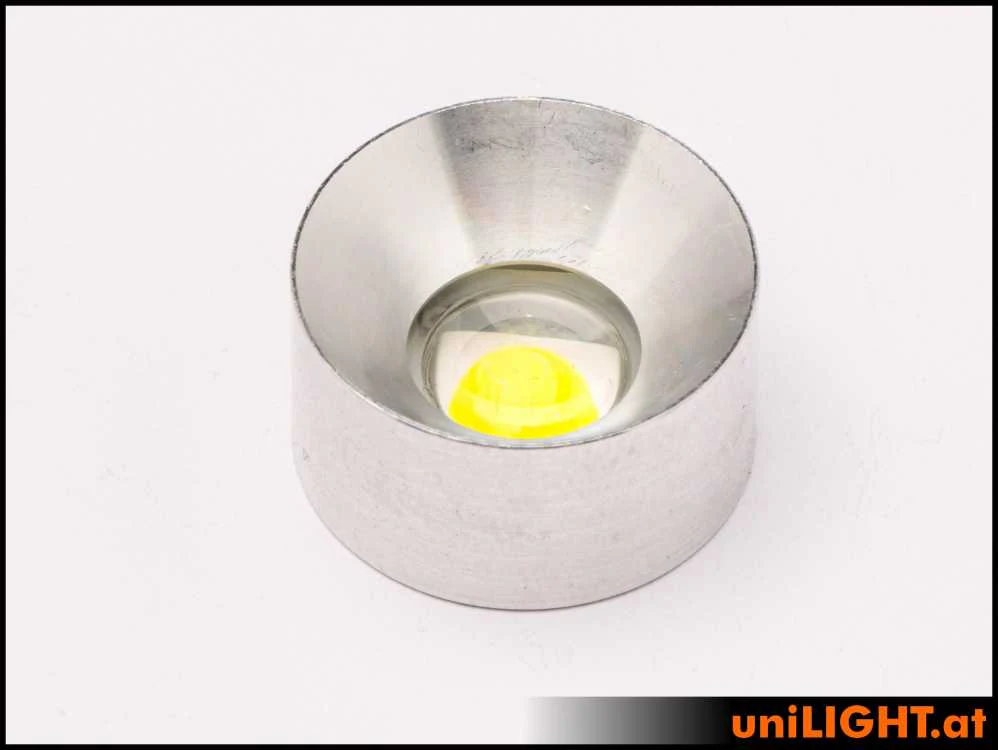

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

UniLight 19mm Gear-Spotlight, 2.6Wx2, Short - White SPOT19X-026x2-WE

New ultrapower headlights with integrated optics and approx. 220 lumen output, absolute novelty in terms of brightness thanks to high-performance COB chip technology in an extremely compact design. CNC-manufactured aluminum reflector with 19mm diameter, optimized for performance and weight for use as a landing gear headlight or in areas with very little installation depth. Without sufficient air for cooling, the headlight may only be in operation for approx. 3 minutes; it functions as a landing light. In addition, additional ventilation or mounting on a metallic surface (landing gear leg, bracket) must be provided.

These headlights already have optics built in. This is why they are available as standard with a beam angle of approx. 90 ° or in the directional version with 45 °

Direct operation with 2S (8V) Lipo, with 3S (12V) the enclosed additional resistor must be soldered in. Make sure there is enough cooling air during operation, if necessary check the working temperature to below 65-70 ° C.

Performance: 2.6Wx2 reference power
Overtemperature protection: switch-off and clocking of the light at 65-70°
Voltage: 2S/8V (3S/12V), use enclosed resistor additionally for 12V!
Electricity: 0.2A
Beam angle: ~45° or 90°
Light intensity: ~220 Lumen WHITE
Light intensity: ~220 Lumen WARMWHITE
Dimension: D19x10mm
Weight: 9g (without cable)

Ready to use with 1m connection cable for 3S operation

With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.


The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!
