UniLight 20mm Drop-Out Spotlight HV, 4Wx2 - White

Space-efficient drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use! Now with Kingmax KM04MD HV Servo, making it compatible with any system.

Our pre-assembled units use compact 20mm High-Grade aluminium spotlights in x2 technic, providing impressive light output in a compact form. The module comes fully-assembled; simply attach the base plate with adhesive (e.g., UHU 300) as needed.

Technical Data:
Power: 4Wx2 reference power
Voltage: 8V, use additional resistor for 12V!
Current: 0.35A
Beam angle: ~100°
Light intensity: 2x270 lumens WHITE
Light intensity: 2x250 lumens WARM WHITE
Weight: 22g (with servo)
Dimensions frame: 53x22mm, height 13,5mm

Operating Voltage: 2S/8V or 3S/12V with additional resistor

Cable Length: 0.5m PTFE 0,14mm²

Design: Round

Dimension: 20mm

Function: Flip Spotlights

Delivery Content:
Ready assembled with 0.5m connection cable

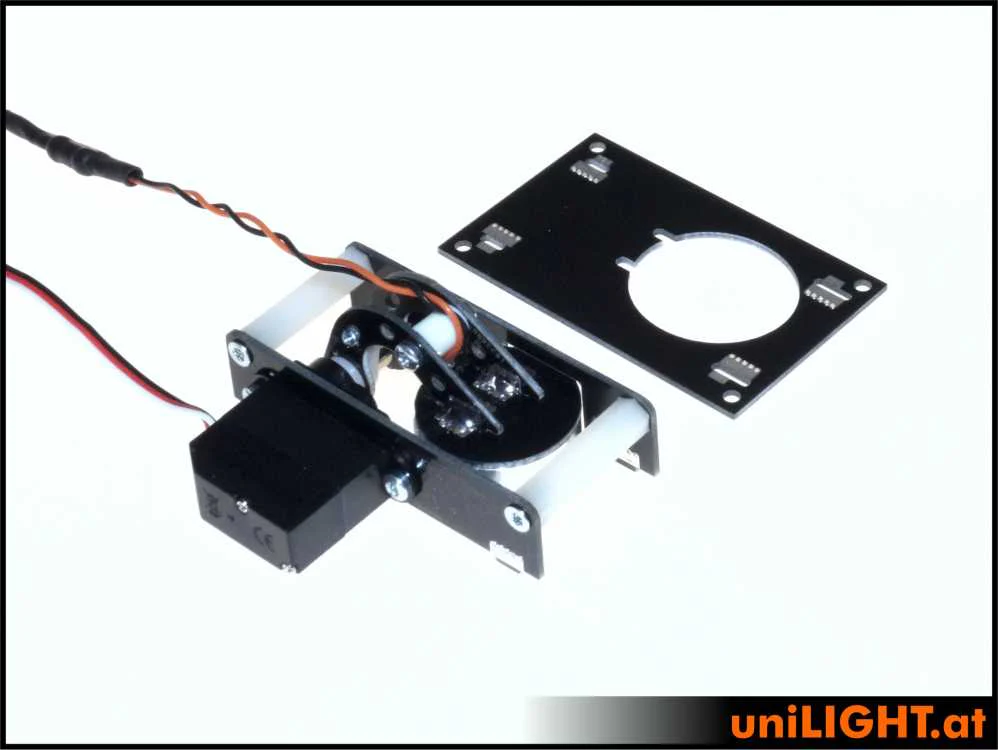

Assembly Instruction:
Simple design mounted directly on the Servo usually only requires fine-tuning of the position once installed.

Warning Notice:
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.

Attention: The LED lights are extremely bright! Never look directly into an LED!
