The Story

UniLight 6mm Dual Navigation + Strobe Light, 12Wx2 - Red-White DUAL6-120x2-RTWE

New generation of compact and very powerful position luminaires with integrated flashlight!

The angled design ensures optimal forward emission for the position light and side emission for the strobe. Provides excellent visibility with minimal glare, just like the prototypes.

The extremely compact design makes it easy to integrate in the thinnest wing tips of jets, sport aircrafts and gliders.

Technical Data:

Performance: 4Wx2 RED/GREEN und 8Wx2 WHITE reference power
Voltage: 8(12)V; 0.3A RED/GREEN; 0.6A WHITE
Light intensity: ~100 Lumen RED
Light intensity: ~180 Lumen GREEN
Light intensity: ~590 Lumen WHITE
Dimensions: 6.6x55, 30mm
Weight: 9g (without cable)

Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Dual Navigation/Strobe
Dimensions: 6mm



Delivery Content:

Equipped with 1m silicone cable and a highly transparent and extremely break-proof cover cap made of injection-moulded polycarbonate.

Assembly Instruction:

The cap must be glued to the light module on the model.

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!

UniLight 6mm Dual Navigation + Strobe Light, 12Wx2 - Red-White - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

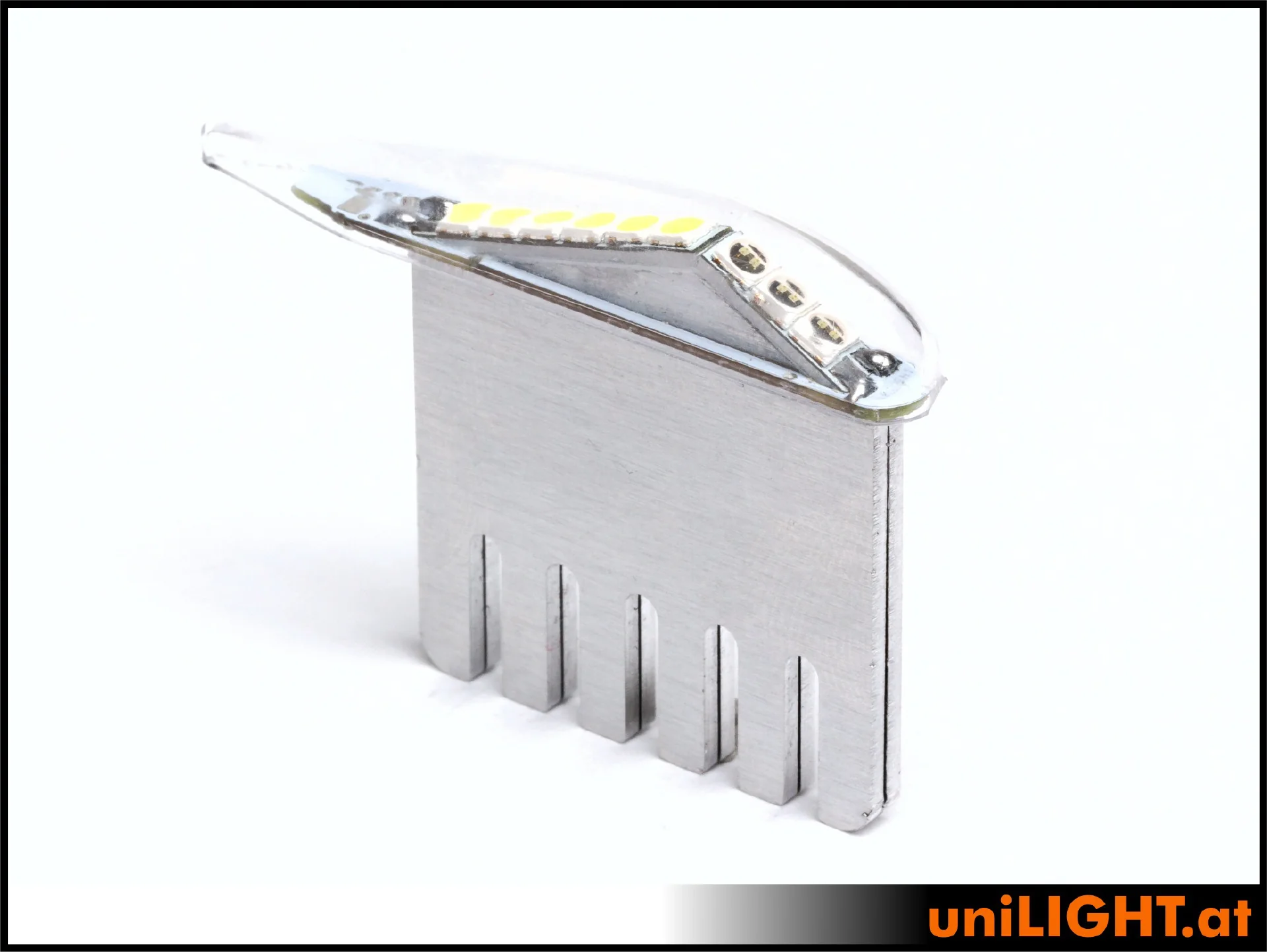

UniLight 6mm Dual Navigation + Strobe Light, 12Wx2 - Red-White - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

UniLight 6mm Dual Navigation + Strobe Light, 12Wx2 - Red-White DUAL6-120x2-RTWE

New generation of compact and very powerful position luminaires with integrated flashlight!

The angled design ensures optimal forward emission for the position light and side emission for the strobe. Provides excellent visibility with minimal glare, just like the prototypes.

The extremely compact design makes it easy to integrate in the thinnest wing tips of jets, sport aircrafts and gliders.

Technical Data:

Performance: 4Wx2 RED/GREEN und 8Wx2 WHITE reference power
Voltage: 8(12)V; 0.3A RED/GREEN; 0.6A WHITE
Light intensity: ~100 Lumen RED
Light intensity: ~180 Lumen GREEN
Light intensity: ~590 Lumen WHITE
Dimensions: 6.6x55, 30mm
Weight: 9g (without cable)

Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Dual Navigation/Strobe
Dimensions: 6mm



Delivery Content:

Equipped with 1m silicone cable and a highly transparent and extremely break-proof cover cap made of injection-moulded polycarbonate.

Assembly Instruction:

The cap must be glued to the light module on the model.

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
