UniLight 20mm Gear-Spotlight, 8Wx2,Short - White
HomeStore

UniLight 20mm Gear-Spotlight, 8Wx2,Short - White

UniLight 20mm Gear-Spotlight, 8Wx2,Short - White

$11.75

Original: $33.57

-65%
UniLight 20mm Gear-Spotlight, 8Wx2,Short - White—

$33.57

$11.75

The Story

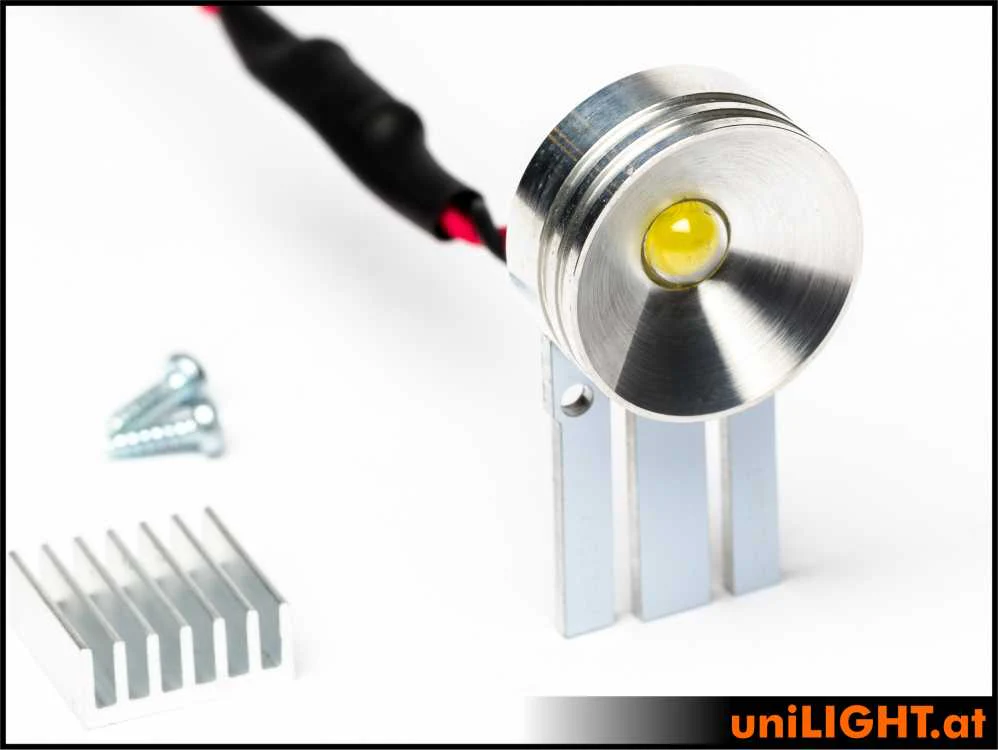

UniLight 20mm Gear-Spotlight, 8Wx2,Short - White SPOT20X-080x2-WE

Flat Ultra-Power spotlight with up to 400 Lumen, CNC manufactured aluminium reflector with 20mm diameter and assembly plate for horizontal cooling. Ideal on undercarriages or as pop-up spotlights. The enclosed heatsink should necessarily be glued on for cooling purposes. It is recommended to directly glue the spotlight on the undercarriage leg with thermal conductive adhesive, then heatsink and mounting flange can be completely removed, so that only the reflector remains. Attention: This Ultra-Power luminaire has no temperature protection, a heat bridge connection to the carrier (undercarriage leg) is highly recommended.

Direct operation with 2S LiPo (8V). With 3S (12V), the additional resistor has to be soldered in or use a 8W connection cable (accessories). Please ensure sufficient cooling air during operation.

Performance: 8Wx2 reference power
Voltage: 8V, use enclosed resistor for 12V
Electricity: 0.7A
Beam angle: ~100°
Light intensity: ~400 Lumen WHITE
Light intensity: ~360 Lumen WARMWHITE
Dimension: D20x39x9mm
Weight: 7g (without cable)

Ready to use with 1m connection cable, heatsink and additional resistor for 3S operation

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!

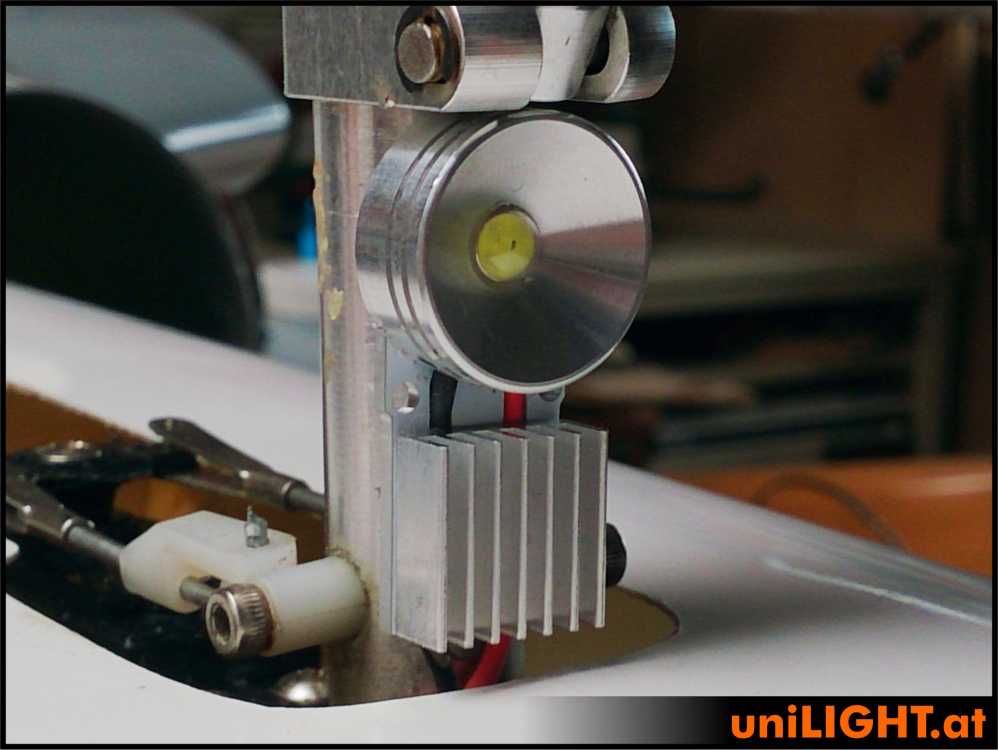

UniLight 20mm Gear-Spotlight, 8Wx2,Short - White - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

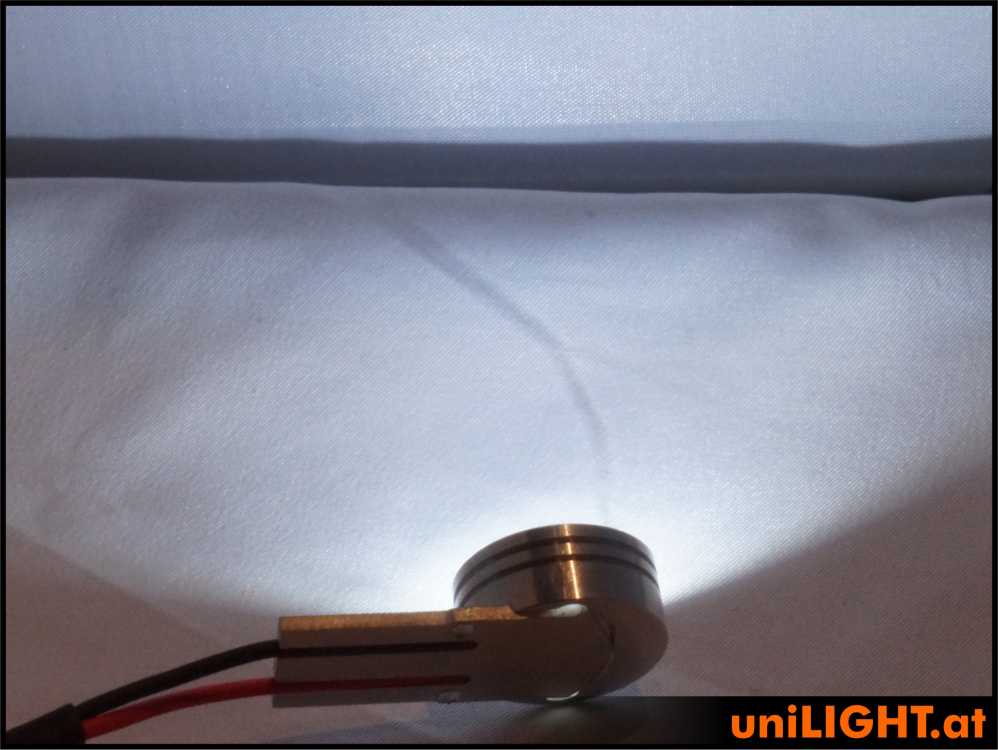

UniLight 20mm Gear-Spotlight, 8Wx2,Short - White - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

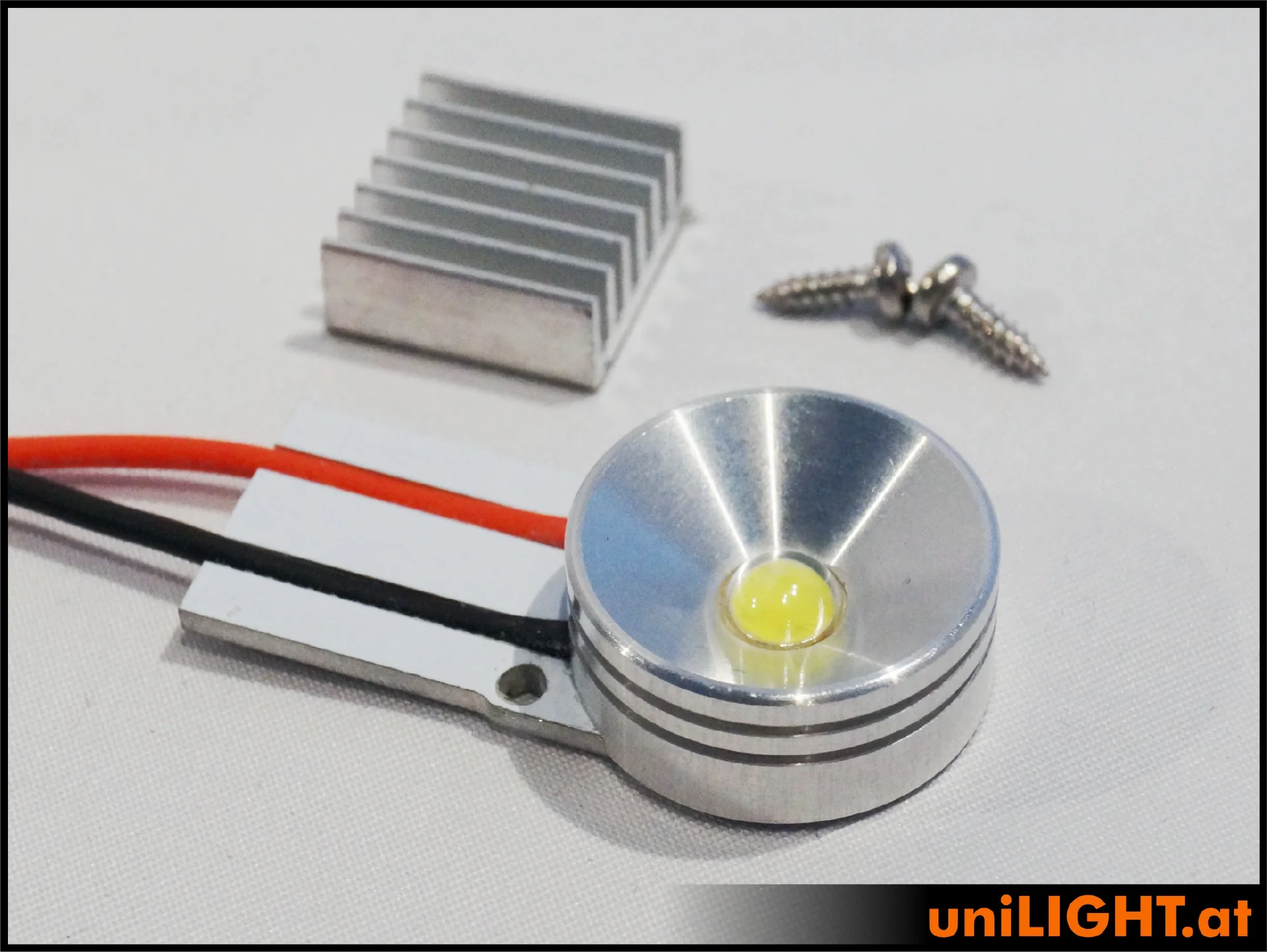

UniLight 20mm Gear-Spotlight, 8Wx2,Short - White - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

UniLight 20mm Gear-Spotlight, 8Wx2,Short - White SPOT20X-080x2-WE

Flat Ultra-Power spotlight with up to 400 Lumen, CNC manufactured aluminium reflector with 20mm diameter and assembly plate for horizontal cooling. Ideal on undercarriages or as pop-up spotlights. The enclosed heatsink should necessarily be glued on for cooling purposes. It is recommended to directly glue the spotlight on the undercarriage leg with thermal conductive adhesive, then heatsink and mounting flange can be completely removed, so that only the reflector remains. Attention: This Ultra-Power luminaire has no temperature protection, a heat bridge connection to the carrier (undercarriage leg) is highly recommended.

Direct operation with 2S LiPo (8V). With 3S (12V), the additional resistor has to be soldered in or use a 8W connection cable (accessories). Please ensure sufficient cooling air during operation.

Performance: 8Wx2 reference power
Voltage: 8V, use enclosed resistor for 12V
Electricity: 0.7A
Beam angle: ~100°
Light intensity: ~400 Lumen WHITE
Light intensity: ~360 Lumen WARMWHITE
Dimension: D20x39x9mm
Weight: 7g (without cable)

Ready to use with 1m connection cable, heatsink and additional resistor for 3S operation

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!
