UniLight Embedded Controller (Standard)—
$29.07
The Story

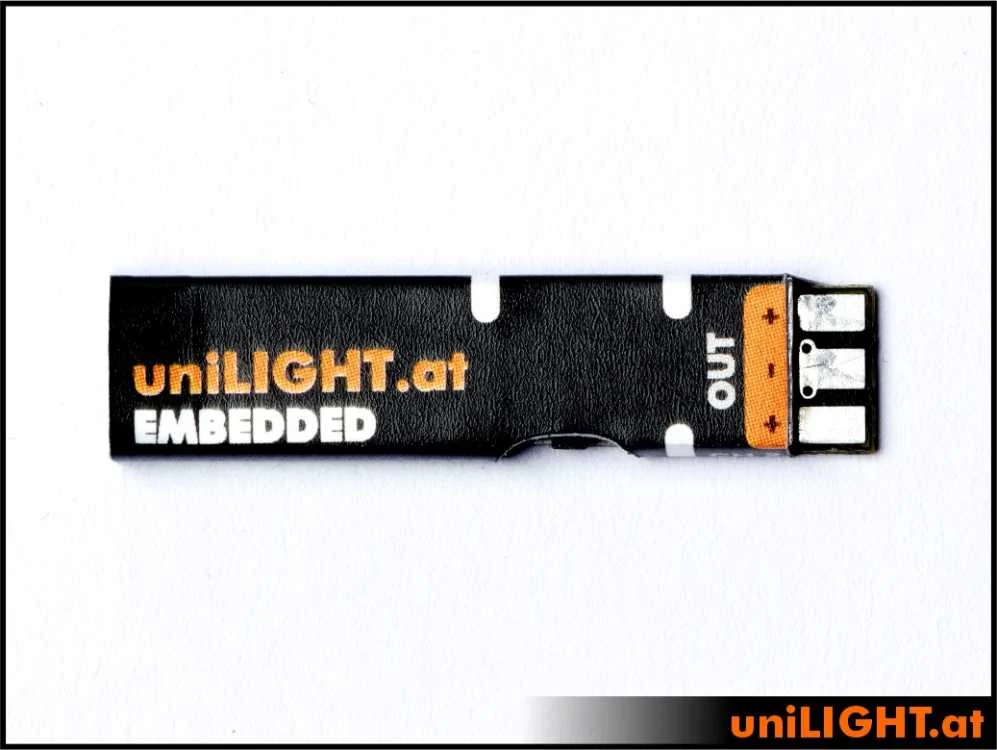

UniLight Embedded - Standard Finish MODUL-EMBEDDED

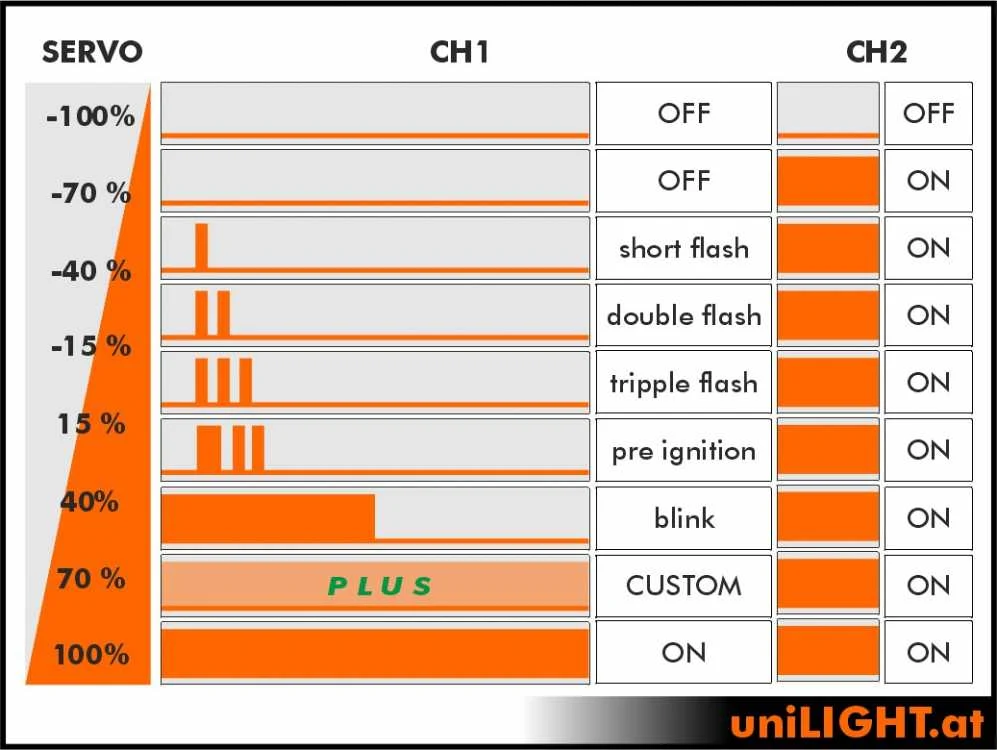

The EMBEDDED is currently the smallest but most advanced lighting control from uniLIGHT.at. With approx. 7x30x2.5mm it is only as small as matches, so that it can be integrated anywhere, even directly in lights or industrial applications. It supports 1 ½ functions: i.e. a fully-fledged, configurable channel and a second switched channel, e.g. to operate the navigation light of a DUAL light.

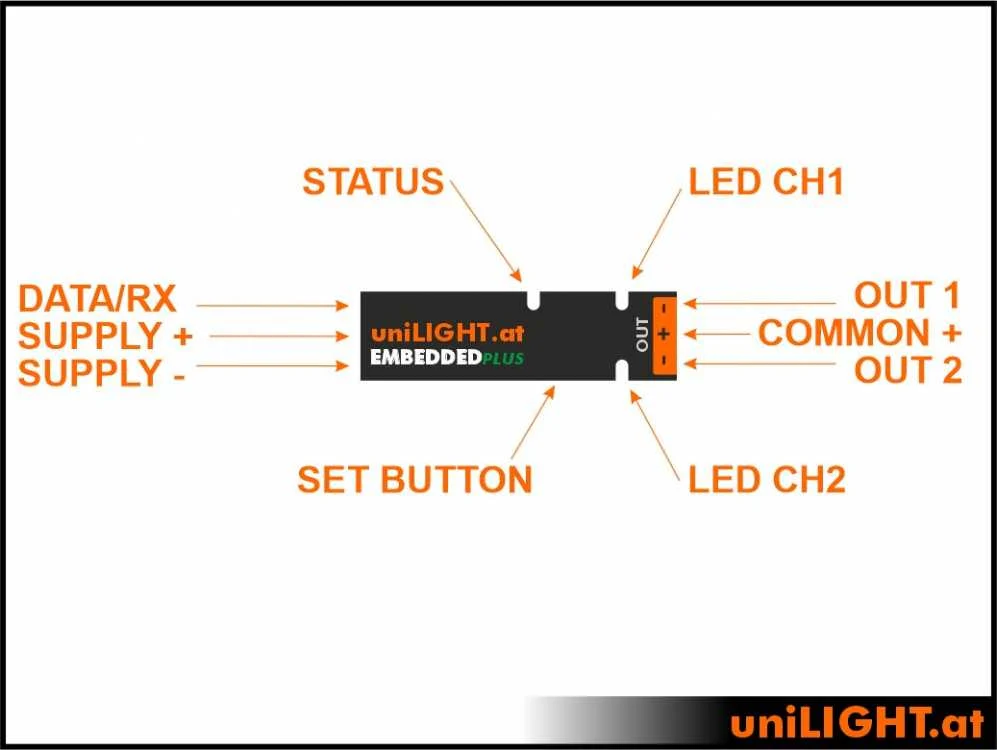

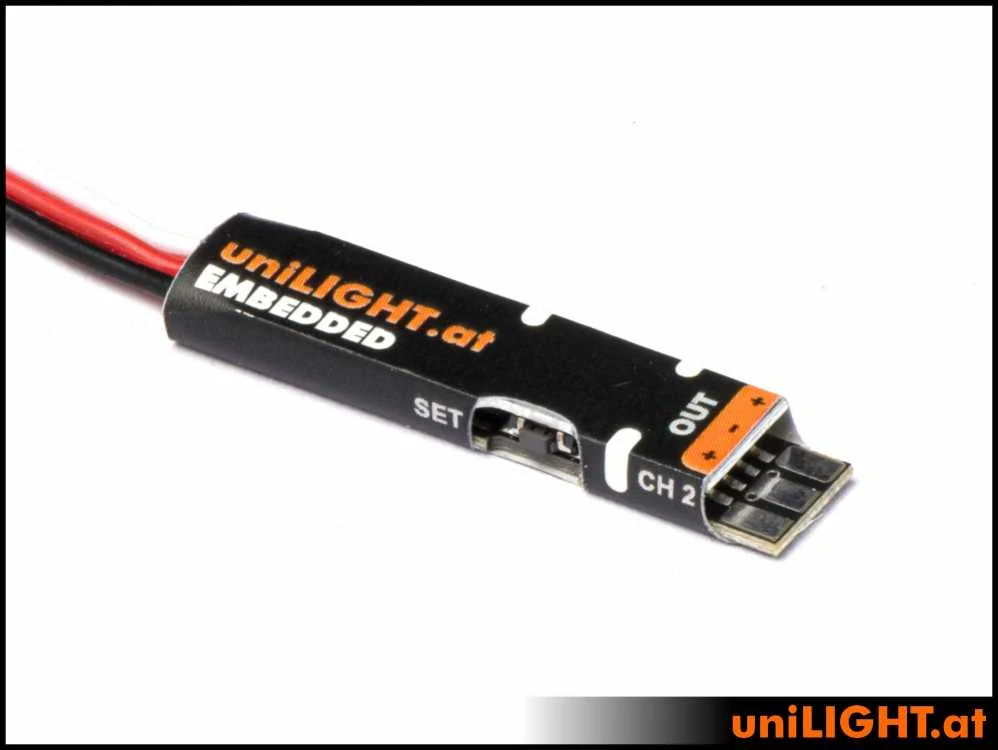

It is equipped with a wealth of new and old functions and is therefore suitable for almost all applications. As a member of the uniLIGHTPLUS family, it can be fully programmed and configured with the programming cable and the uniLIGHT DESK. The button can only be used to change the flashing pattern in solo mode and the speed of the pattern.

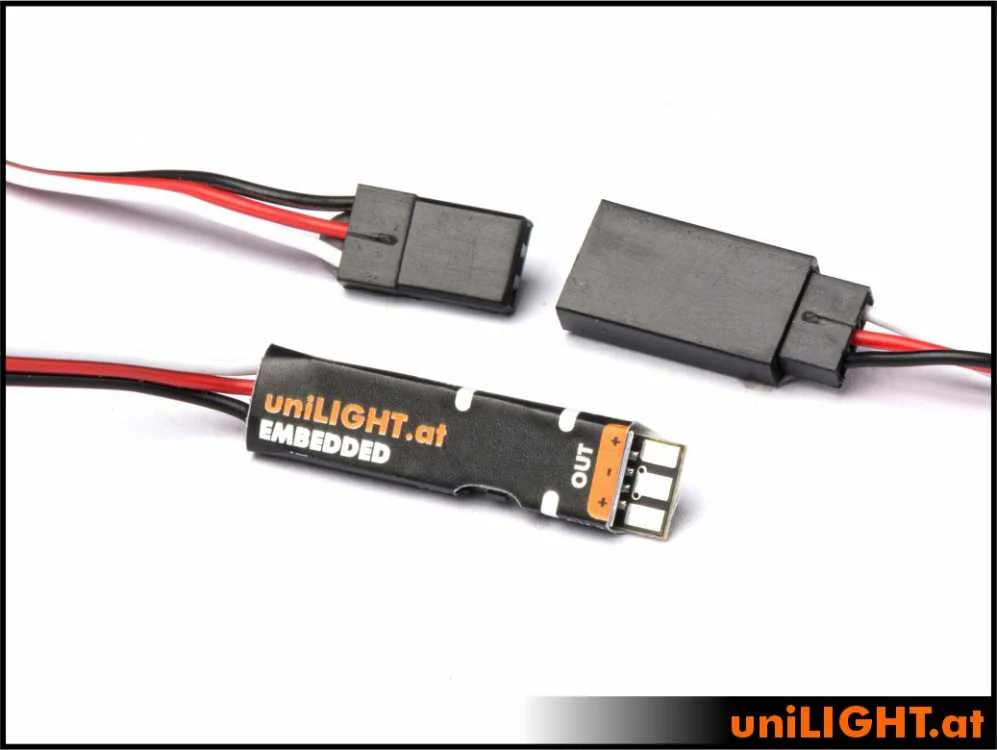

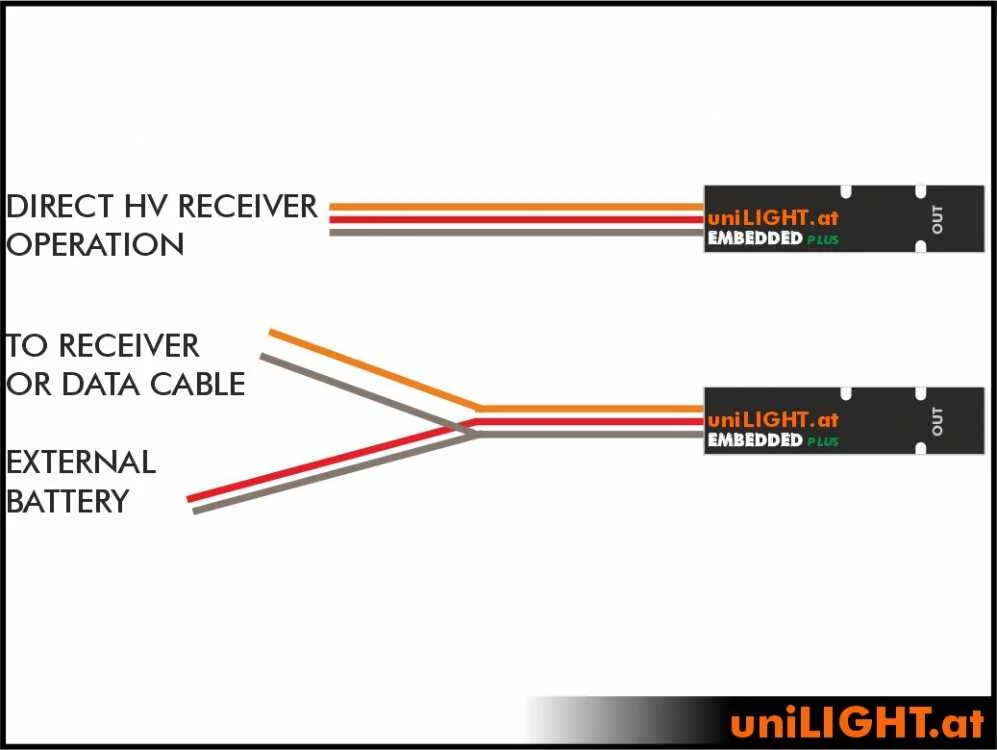

Like other uniLIGHT controls, the EMBEDDED can be connected to a battery either directly or via the included Y-cable. With uniLIGHT.at lights this is usually a 2S LiPo battery. As an innovation, you can also connect HV systems directly to the receiver.
Like other uniLIGHT controls, the EMBEDDED can be connected to a battery either directly or via the included Y-cable. With uniLIGHT.at lights this is usually a 2S LiPo battery. As an innovation, you can also connect HV systems directly to the receiver.
With the EMBEDDED, our standard plugs for the lights were deliberately omitted because the control can in most cases be placed directly in the lamp, i.e. soldered. Due to the fixed wiring there is also no short-circuit and polarity reversal protection, which was omitted in the application in favour of the size.
As a cost-optimized OEM version, the control can be integrated directly into professional applications.
Connection Voltage: 4,8-9,6V
Weight (without cable): 1g
Size: 7.3x30.8x2.6mm (W/L/H)
Current Max: 3A to 16V
Impulse Current Max: 5A to 16V
Galvanish Separated System: No
Operation Without RC Signal: Yes
Operation in uniLIGHTPLUS Data mode: Yes
Variable Speed Effects: 8 + 1 free to configure
Weight (without cable): 1g
Size: 7.3x30.8x2.6mm (W/L/H)
Current Max: 3A to 16V
Impulse Current Max: 5A to 16V
Galvanish Separated System: No
Operation Without RC Signal: Yes
Operation in uniLIGHTPLUS Data mode: Yes
Variable Speed Effects: 8 + 1 free to configure
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
UniLight Embedded - Standard Finish MODUL-EMBEDDED
The EMBEDDED is currently the smallest but most advanced lighting control from uniLIGHT.at. With approx. 7x30x2.5mm it is only as small as matches, so that it can be integrated anywhere, even directly in lights or industrial applications. It supports 1 ½ functions: i.e. a fully-fledged, configurable channel and a second switched channel, e.g. to operate the navigation light of a DUAL light.
It is equipped with a wealth of new and old functions and is therefore suitable for almost all applications. As a member of the uniLIGHTPLUS family, it can be fully programmed and configured with the programming cable and the uniLIGHT DESK. The button can only be used to change the flashing pattern in solo mode and the speed of the pattern.
Like other uniLIGHT controls, the EMBEDDED can be connected to a battery either directly or via the included Y-cable. With uniLIGHT.at lights this is usually a 2S LiPo battery. As an innovation, you can also connect HV systems directly to the receiver.
Like other uniLIGHT controls, the EMBEDDED can be connected to a battery either directly or via the included Y-cable. With uniLIGHT.at lights this is usually a 2S LiPo battery. As an innovation, you can also connect HV systems directly to the receiver.
With the EMBEDDED, our standard plugs for the lights were deliberately omitted because the control can in most cases be placed directly in the lamp, i.e. soldered. Due to the fixed wiring there is also no short-circuit and polarity reversal protection, which was omitted in the application in favour of the size.
As a cost-optimized OEM version, the control can be integrated directly into professional applications.
Connection Voltage: 4,8-9,6V
Weight (without cable): 1g
Size: 7.3x30.8x2.6mm (W/L/H)
Current Max: 3A to 16V
Impulse Current Max: 5A to 16V
Galvanish Separated System: No
Operation Without RC Signal: Yes
Operation in uniLIGHTPLUS Data mode: Yes
Variable Speed Effects: 8 + 1 free to configure
Weight (without cable): 1g
Size: 7.3x30.8x2.6mm (W/L/H)
Current Max: 3A to 16V
Impulse Current Max: 5A to 16V
Galvanish Separated System: No
Operation Without RC Signal: Yes
Operation in uniLIGHTPLUS Data mode: Yes
Variable Speed Effects: 8 + 1 free to configure
