The Story

UniLight UniConnect Locking Cable Connection DIY Set 3 Servo + 4 Wires RTW Soldered CABLE-9P4S-RTW

The uniCONNECT connector system uses solid contacts and highly durable base strips. With This New Design, High Pin Counts in a Compact Connector Can Now Finally Be Realized – Up to 28 Pins. It allows for more than 3000 cycles with load capacity of up to 10A, making it optimal for use in model making.

The blade strips have the advantage that all certificates can be and easily soldered without the risk of melting a plastic carrier. They include strain relief, locking mechanisms, grips, and kink protection. The contacts on the blade Strips are always visible, making it easy to detect any damage or damage immediately.

The greatest advantage of the system is that it provides double redundancy for important control within functions the connector itself. Therefore, the System distinguishes between primary pins (doubled, for main functions) and secondary pins (single, for, lights gear, brakes, etc.), traditional traditional systems that only specify pin counts.

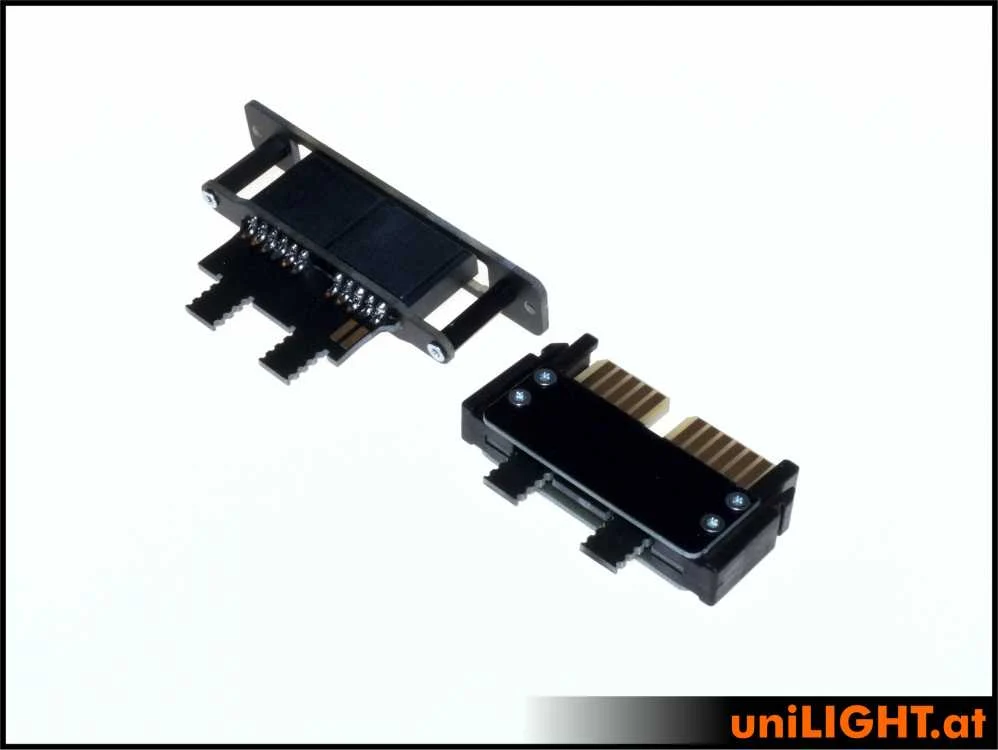

Locking CABLE is a classic connection type where a socket is permanently installed in the fuselage, and the cables from the wing are connected to a plug. This plug is inserted into the socket during assembly and locks in place. The remaining cable is then pushed back into the wing after the plug is connected.

Technical Data:

9 primary contacts for main functions, 10A
4 secondary contacts for additional functions, 5A
3000 cycles,
strain relief, handle and bend protection
Easily accessible contacts and soldering points
Classic connector with secure locking
Pre-assembled with 3m cable (0.35mm2)
Available as a kit with all parts and screws
Dimensions socket plate: 13x70mm
Connector weight: 21g cable without cable

Purpose of Use:

RTW
Pre-assembled connector, where only the cables need to be soldered. The plate assembly has already been done. Delivered as 2xM and 2xF.
DIY as a kit for the model maker with all individual parts and screws for your own construction. As a result, of course, very attractive in price, two pairs are always delivered, i.e. 2xM and 2xF as a kit.

RTW as a pre-built plug, to which only the cables have to be soldered - the construction of the plates is already done. Delivered 2xM and 2xF

Delivery Content:

Ready-to-Wire / RTWR:
Pre-assembled connector with free soldering points for custom realization of a servo connection (main functions like ailerons, flaps, etc.). 2 pairs (2xM / 2xF).

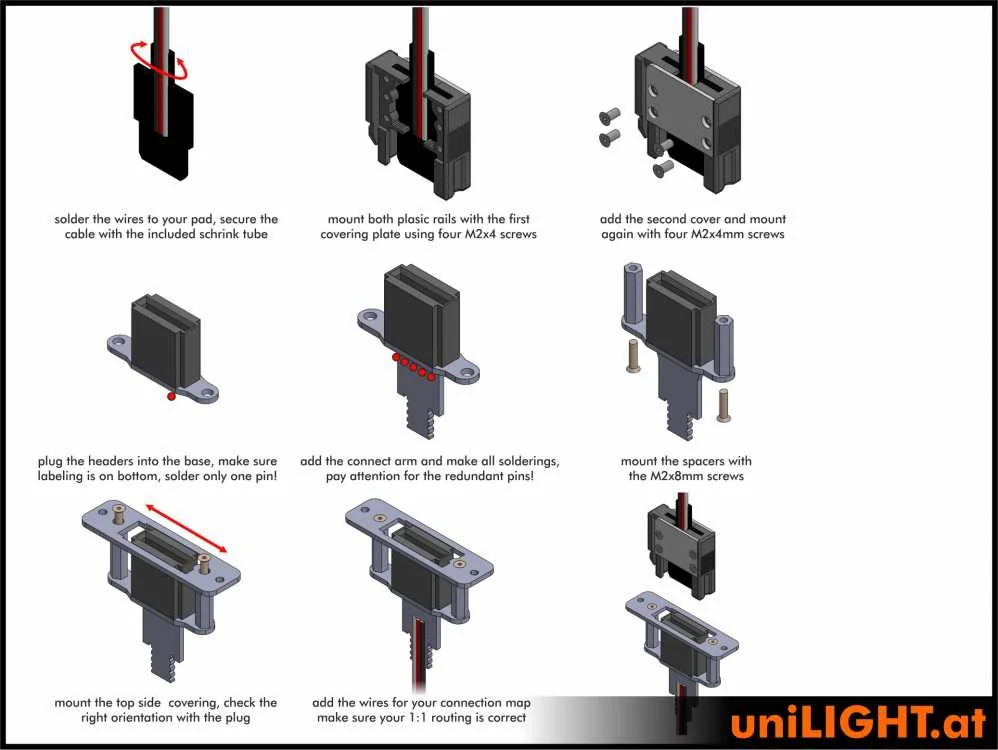

Assembly Instruction:
Socket:
When installing the socket, make sure that the areas for locking the mechanism are free that it can properly snap into place. Only use the provided shrink tubing with inner inner securing the cable.

Plug:
When Attaching the Side Plates, ensuring that the small screws Hold the Male Connector in Place. If this is not immediately possible, the holes in the side plates can be slightly adjusted. The locking clips can be softened with some heating and bent back into shape if they have lost tension.

Warning Notice:
Always use primary contacts for main functions!
