UniLight Pure Navigation Light, 4Wx2 - Green

UniLight 4Wx2 Pure Light Green PURE-040x2-GN

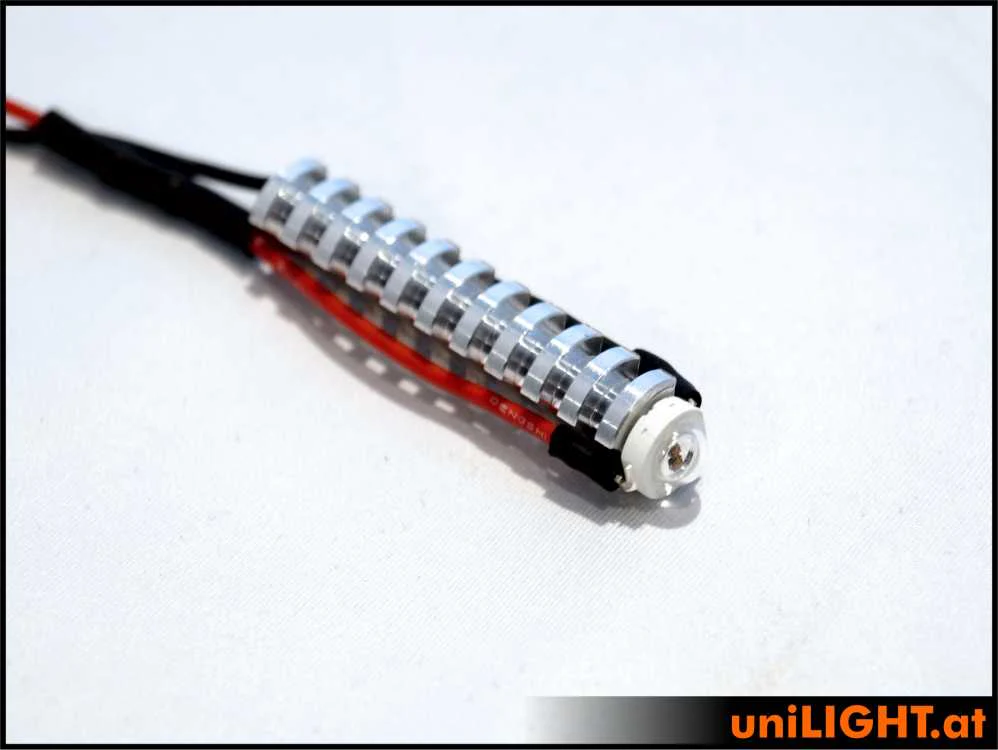

Universal light with massively increased light power as navigaton/position light for installation behind existing glass cap, mostly on wingtips or on the leading edge or special DIY solutions. The module is being delivered completely prewired on a special shaped aluminium heatsink.

Electricity: 4W reference power, 8(12)V, 0.35A
Beam angle: ~160°
Light intensity: ~90 Lumen RED
Light intensity: ~140 Lumen GREEN
Light intensity: ~190 Lumen WHITE
Dimension bolt : D10x42mm
Dimension chip: D8mm
Weight: 4g (without cable)

Ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!
