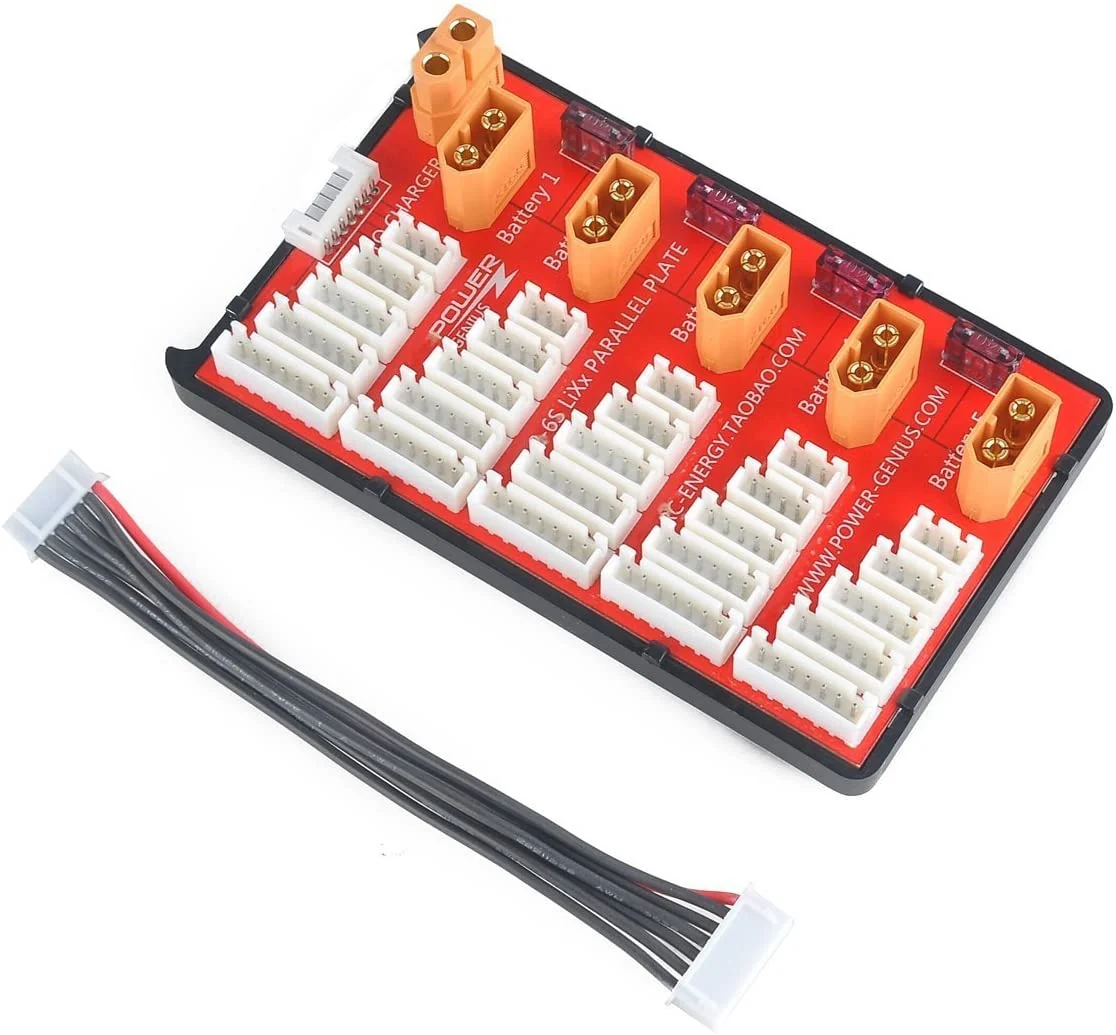

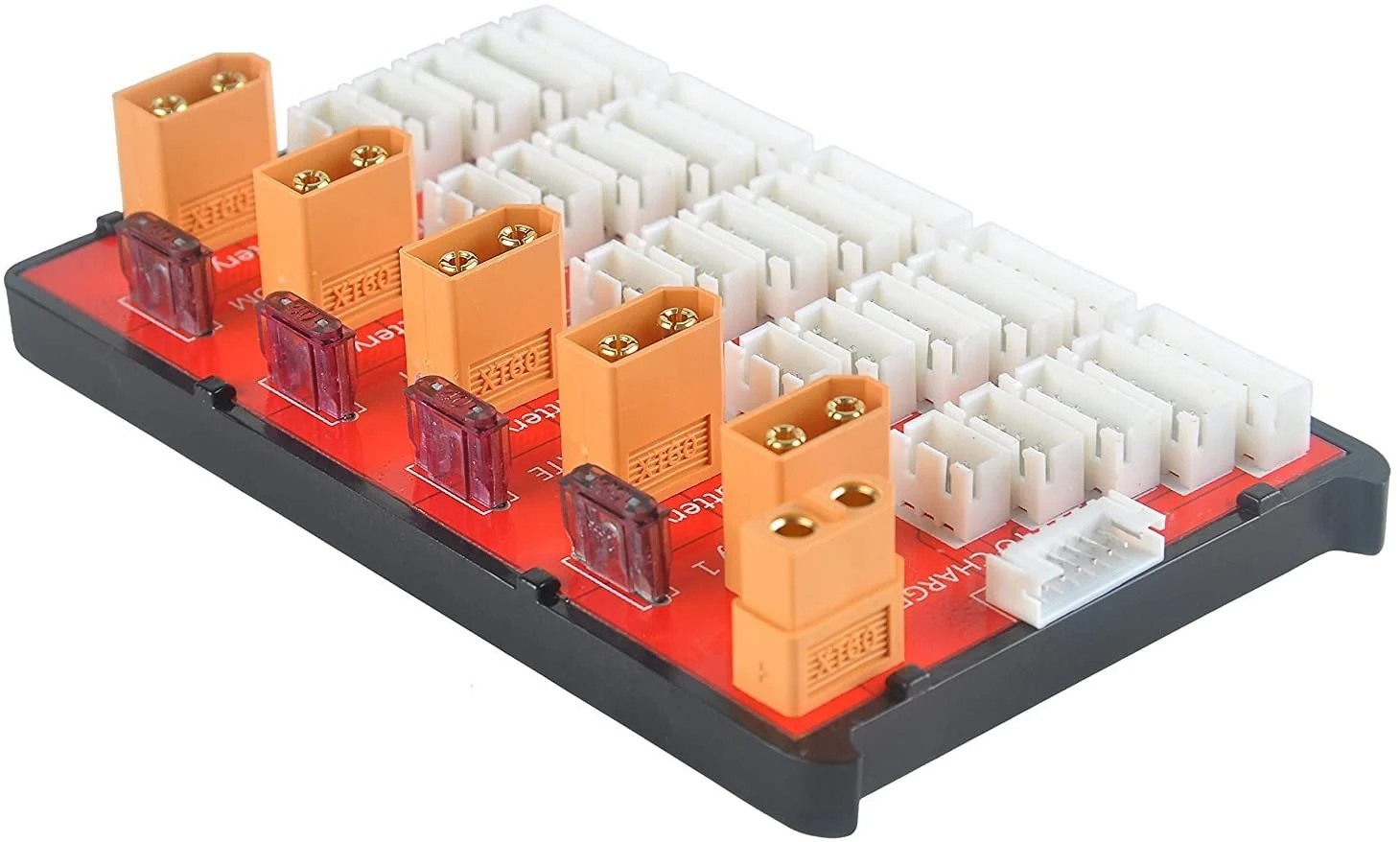

XT60 Fused Parallel Charging Board 2 to 6S JST-XH with 6s Balance Lead

XT60 Fused Parallel Charging Board 2 to 6S JST-XH with 6s Balance Lead

This simple fused balance board offers the option of parallel charging up to five similarly discharged batteries of the same size and capacity at the same time.
This board is designed to link to your charger using a XT60 charge lead not supplied but available to order from Nexus Models

Features:
Supports up to five packs of the same type, same cells 2-6S battery pack.
Balanced port output line with 18AWG multi-strand silicone line.
High-quality gold-plated connectors.
Thicken PCB copper foil, allow security using 20A charging current

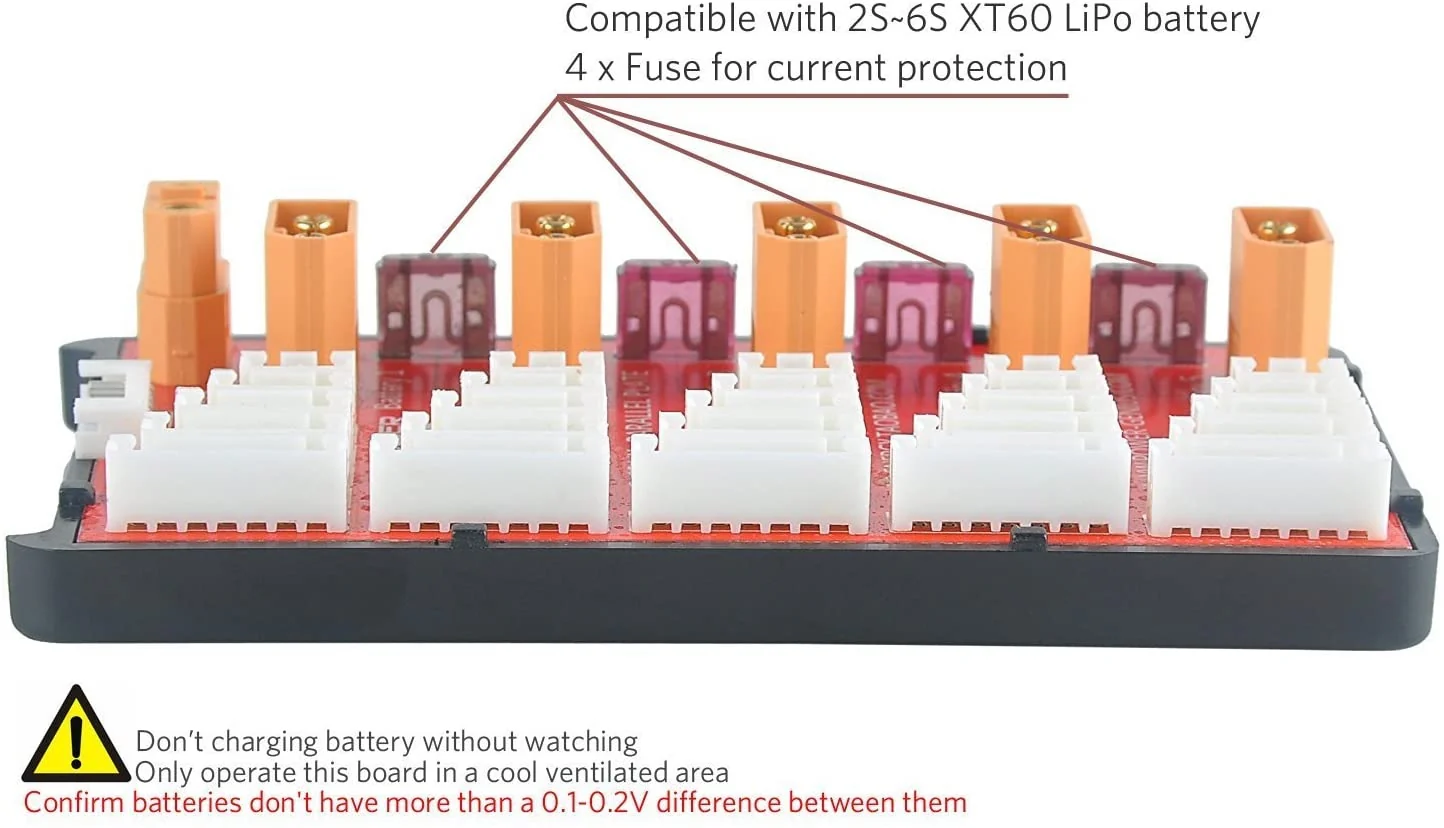

Equipped with 25A fuse between any two groups of batteries, to prevent line burned due to the large battery pressure.

Specifications:
Plug: XT60 Plugs
Balance Output Cable: 18AWG silicon cable
Current: Support MAX. 20A charge current
Support any of the following, 5 packs 2S, or 5 packs 3S,or 5 packs 4S,or 5 packs 5S,or 5 packs 6S balance charge.
Cell: 2-6S
Voltage: 0-22.2VDC
Max current: 35A (40A Fuse)
Battery: 5 packs (same discharge state & cell count)
Connector: XT60 / JST-XH

Included items.
1 x XT60 Parallel Charging Board Support up to 5 Packs
1 x 6s Balance Cable
