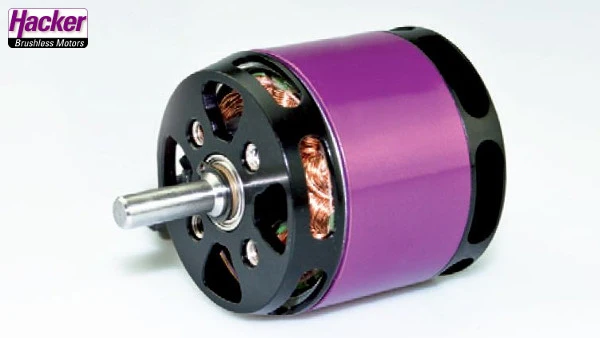

A50-16 S V4 kv365 Brushless Motor from Hacker 15726839
The new V4 Series A50 Brushless provides increased efficiency. Through a newly designed rear end plate and the improved fan a higher power throughput is possible and the continuous load is again improved.
Specifications:
Power range: max. 1250W (15 sec.)
Idle Current @ 8,4V: 1,4A
Resistance (Ri): 0,026 Ohm
RPM/Volt (kv): 365 U/min-1
Weight: 345g
Diameter: 48,7 mm
Length: 47,2 mm
Poles: 14
recom. Speed controller: min. 70A Brushless
recom. Timing: 20° - 25°
Shaft Diameter output: 6 mmÂ
Shaft Diameter, inner diameter: 8mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
A50-16 S V4 kv365 Brushless Motor from Hacker 15726839
The new V4 Series A50 Brushless provides increased efficiency. Through a newly designed rear end plate and the improved fan a higher power throughput is possible and the continuous load is again improved.
Specifications:
Power range: max. 1250W (15 sec.)
Idle Current @ 8,4V: 1,4A
Resistance (Ri): 0,026 Ohm
RPM/Volt (kv): 365 U/min-1
Weight: 345g
Diameter: 48,7 mm
Length: 47,2 mm
Poles: 14
recom. Speed controller: min. 70A Brushless
recom. Timing: 20° - 25°
Shaft Diameter output: 6 mmÂ
Shaft Diameter, inner diameter: 8mm
