$91.14
Original: $260.41
-65%A60-8S V4 28-Pole Motor from Hacker 33726637—
$260.41
$91.14The Story

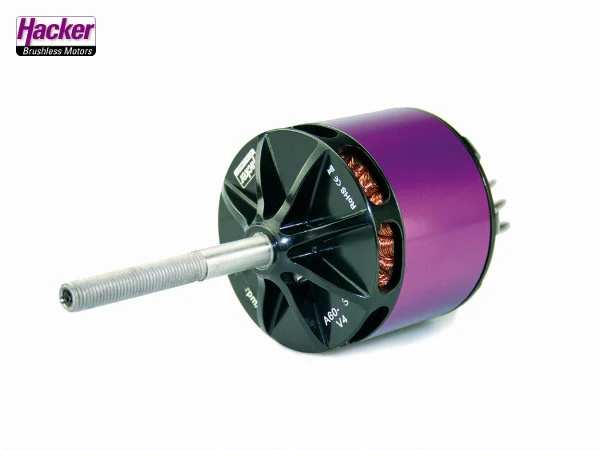

A60-8S V4 28-Pole Motor from Hacker 33726637
With the new V4 version we bring our popular A60 motors to a new level.
A new designed cooling-fan for better cooling, and new larger ball bearings make the
A60 Outrunner motors more efficient and robust in daily operation.

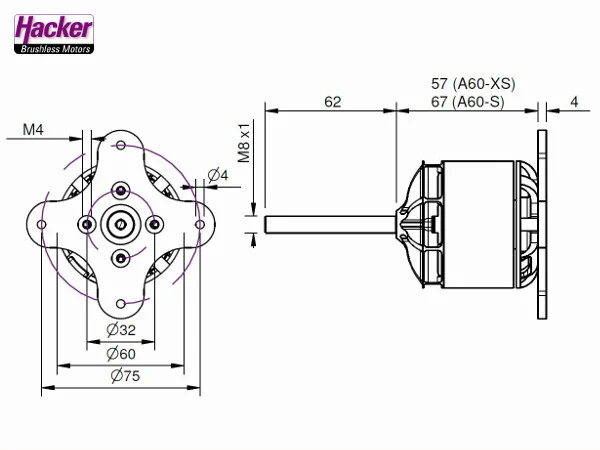

The A60-XS and A60-S series are designed only for Backmount Assembly. The A60-M and A60-L series
can built in as a front mount, or with the optional motormount and a supportbearing the motors can
also be backmounted.Â
A new designed cooling-fan for better cooling, and new larger ball bearings make the
A60 Outrunner motors more efficient and robust in daily operation.
The A60-XS and A60-S series are designed only for Backmount Assembly. The A60-M and A60-L series
can built in as a front mount, or with the optional motormount and a supportbearing the motors can
also be backmounted.Â
Â

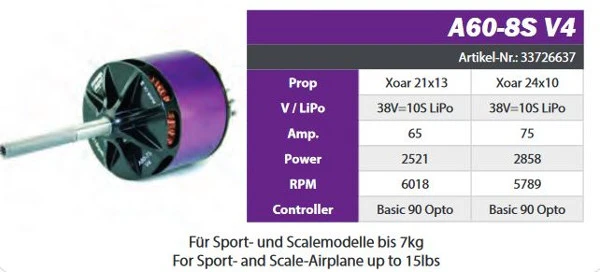

Technical Data:
| Powerrange | Â | max. 2400WÂ (15 sec.) |
| Idle Current at 8,4V | Â | 1,1A |
| Resistance | Â | 0,031 Ohm |
| RPM / Volt | Â | 188 U/min-1 |
| Weight | Â | 595g |
| Diameter | Â | 60 mm |
| Length | Â | 62 mm |
| Type | Â | 28-Pole |
| recommended Timing: |  | 25° |
| Switching Frequency | Â | 8 kHz |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
A60-8S V4 28-Pole Motor from Hacker 33726637
With the new V4 version we bring our popular A60 motors to a new level.
A new designed cooling-fan for better cooling, and new larger ball bearings make the
A60 Outrunner motors more efficient and robust in daily operation.
The A60-XS and A60-S series are designed only for Backmount Assembly. The A60-M and A60-L series
can built in as a front mount, or with the optional motormount and a supportbearing the motors can
also be backmounted.Â
A new designed cooling-fan for better cooling, and new larger ball bearings make the
A60 Outrunner motors more efficient and robust in daily operation.
The A60-XS and A60-S series are designed only for Backmount Assembly. The A60-M and A60-L series
can built in as a front mount, or with the optional motormount and a supportbearing the motors can
also be backmounted.Â
Â
Technical Data:
| Powerrange | Â | max. 2400WÂ (15 sec.) |
| Idle Current at 8,4V | Â | 1,1A |
| Resistance | Â | 0,031 Ohm |
| RPM / Volt | Â | 188 U/min-1 |
| Weight | Â | 595g |
| Diameter | Â | 60 mm |
| Length | Â | 62 mm |
| Type | Â | 28-Pole |
| recommended Timing: |  | 25° |
| Switching Frequency | Â | 8 kHz |
