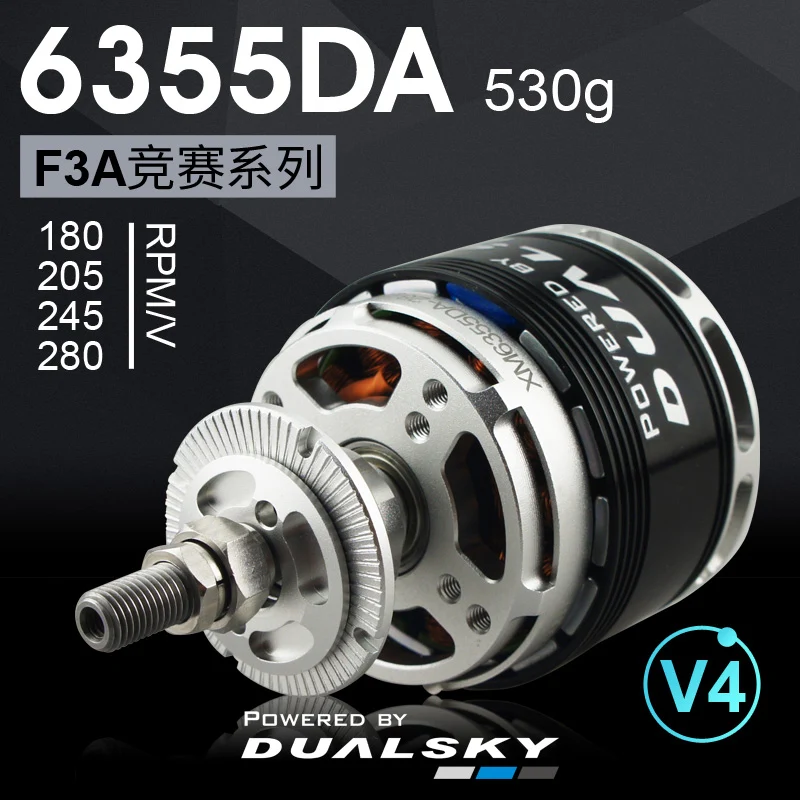

Dualsky XM6355DA-28 V4 F3A Competition 180RPM/V X-Motor DUA082 replacement for the XM6355DA-12
V4 Features:
The new fourth-generation design, redesigned all parts based on the DA family design elements.
XM6352DA V4, corresponding to 3000 watts class, suitable for lightweight F3A airplanes and up to 12kg gliders.
XM6355DA V4 output is up to 3700 watts. It is the standard power for F3A, for example: bipe F3A. It is also suitable for gliders up to 20kg.
New curved magnets. Torque in the middle RPM range is increased by 12% to 15% (compared to DA V3 motor).

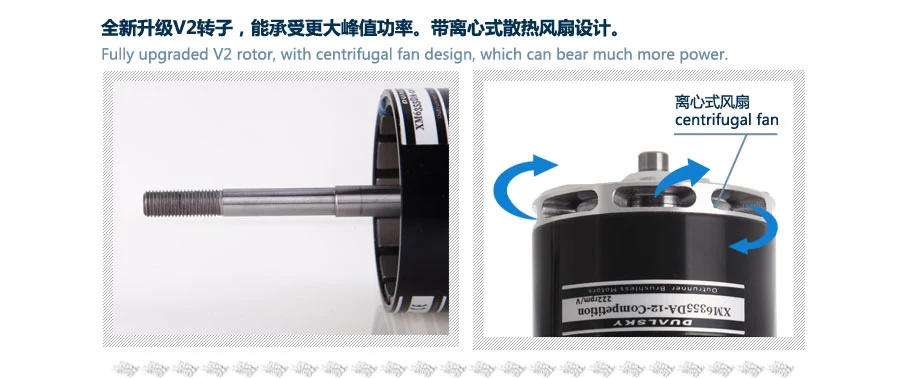

Hollow shaft and lightweight parts, the overall weight is reduced by 7% to 10%.
With 3 EZO bearings and precise balanced rotors, the motors can be maintenance-free up to 1000 flights.
Optimized rear support bearing (mount)
The total length of two types of motor are uniform, the accessories are interchangeable, and they can be replaced seamlessly.
The DUALSKY SUMMIT 100HV (Pattern Flight Edition) ESC is recommended. Its 32-bit core, smart timing and energy recovery brakes provide excellent efficiency and sense of control.
XM6352DA V4 output is upto 3700 watts. It is the standard power for F3A. It is also suitable for gliders upto 20kg
Specification
| Motor Name | XM6355DA-18 | XM6355DA-21 | XM6355DA-25 | XM6355DA-28 |
|---|---|---|---|---|
| RPM/V | 280 | 245 | 205 | 180 |
| Stator (Dx L) | 5325 | 5325 | 5325 | 5325 |
| Weight (g) | 530 | 530 | 530 | 530 |
| Ri (mOhm) | 21.5 | 27.5 | 39.0 | 51.0 |
| Io@10V(A) | 1.15 | 0.90 | 0.72 | 0.60 |
| Voltage (V) | 32 | 32 | 40 | 48 |
| Peak Current (A) | 97 | 92 | 87 | 78 |
| Peak Power (W) | 3104 | 2944 | 3480 | 3744 |
| Torque (N*M) | 4.14 | 4.48 | 5.07 | 5.17 |
