UniLight Emitter Chip, 4W - Green POINT-040-GN
Point LED chip available in RED, GREEN, WHITE, WARM WHITE, ORANGE, and BLUE.
High-performance LED module with 4W reference power. Pre-configured for operation with 2S LiPo (~8V). When using with 3S (12V), the additional resistor must be used. Alternatively, a 4W-3S adapter cable can also be employed.
Performance: 4W reference power
Voltage: 8(12)V, 0.35A
Beam angle: ~140°
Light intensity: ~50 Lumen RED
Light intensity: ~80 Lumen GREEN
Light intensity: ~110 Lumen WHITE
Light intensity: ~90 Lumen WARMWHITE
Dimension: D20x7mm
Weight: 2g (without cable)
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Function: Strobe |

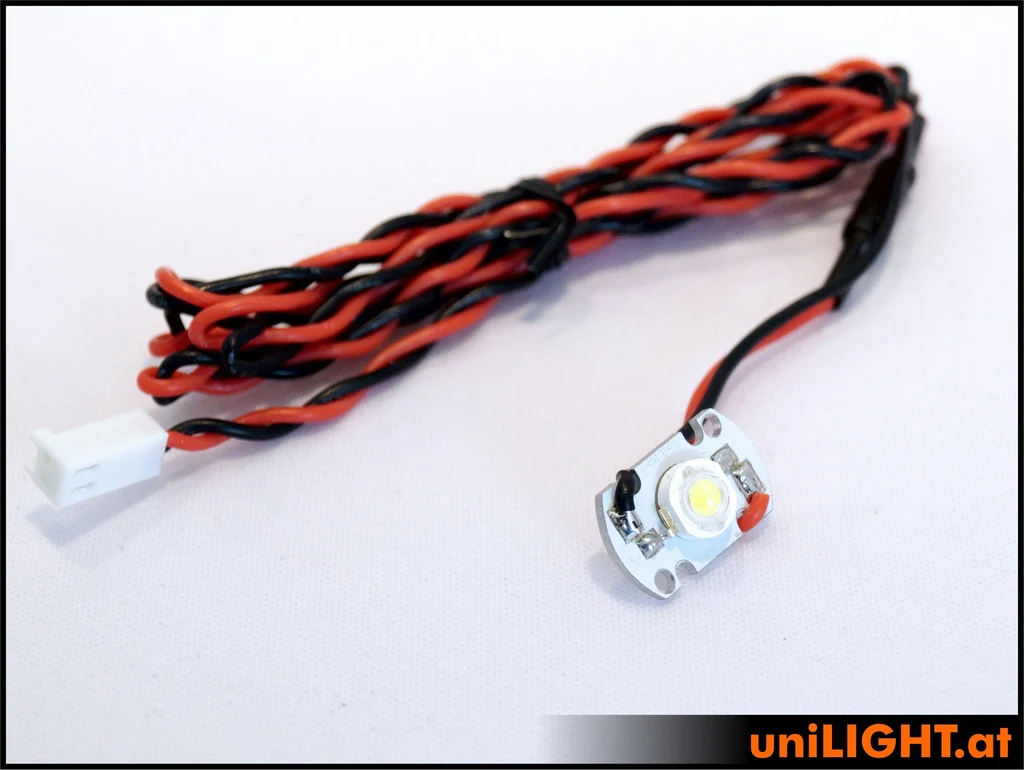

Equipped with 1m silicone cable and pre-configured resistor for 2S
Warning Notice:
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
