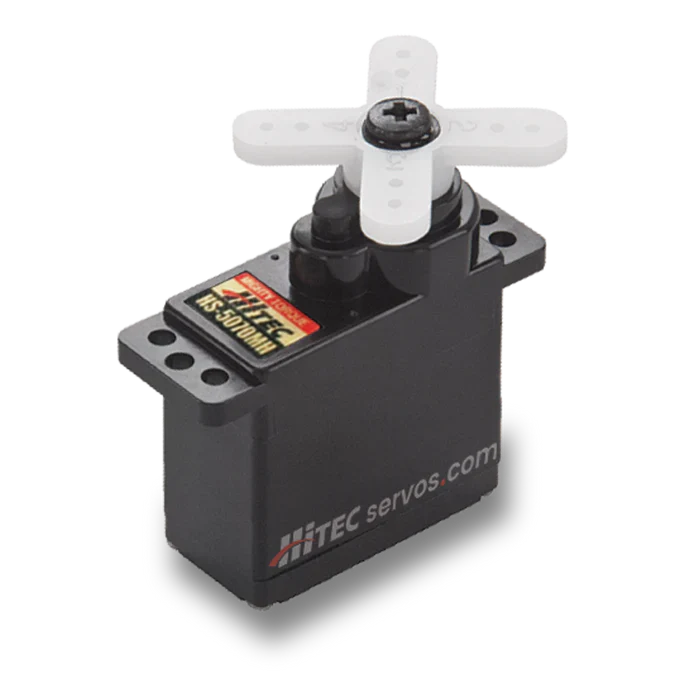

Hitec HS5070MH Ultra Micro Digital Cored Servo 14.2g 3.7kg/0.12s 6.0V - 7.4V 2216545

Hitec HS-5070MH Ultra Micro Digital Cored Servo 14.2g 3.7kg/0.12s 6.0V - 7.4V 2216545

Our new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts. Fast, forceful, fantastic! We Are Hitec!

Features:

• Programmable with metal gears
• Three-poled cored motors
• Top ball bearings

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	6.0V ~ 7.4V
Speed (Second @ 60°)	0.14 ~ 0.12
Maximum Torque Range oz. / in.	42 ~ 52
Maximum Torque Range kg. / cm.	3.0 ~ 3.7
Current Draw at Idle	3 mA
No Load Operating Current Draw	240 mA
Stall Current Draw	1,300 mA
Dead Band Width	2 µs



Physical Specifications

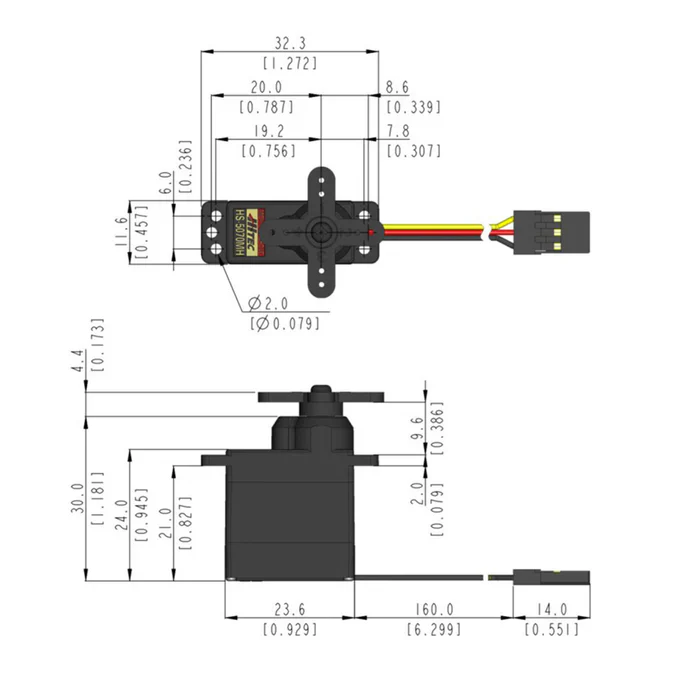

Dimensions (Inches)	0.92 x 0.45 x 1.14
Dimensions (Metric)	23.6 x 11.6 x 28.1
Weight (Ounces)	0.50
Weight (Gram)	14.2
Circuit Type	G1 Programable Digital
Motor Type	3 Pole Metal Brush Neodymium
Gear Material	Metal
Bearing Type	Top Ball Bearing
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	28 / 20
