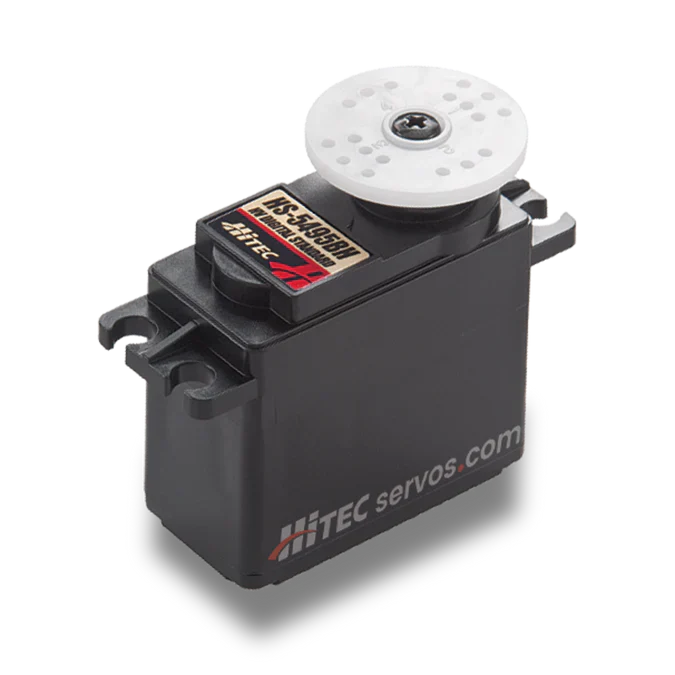

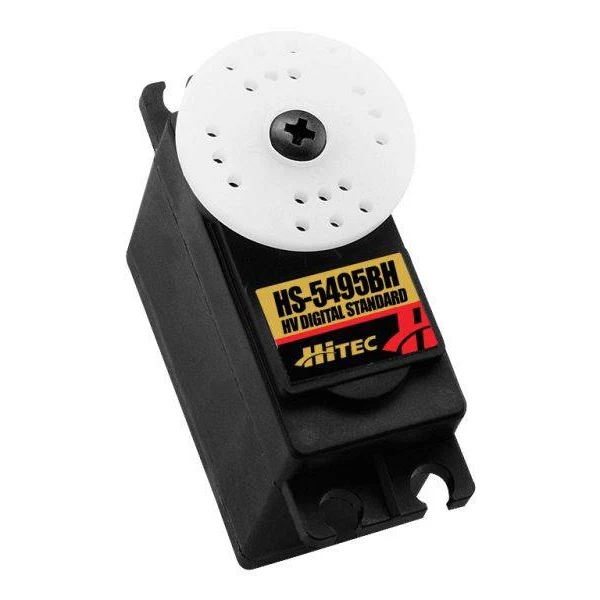

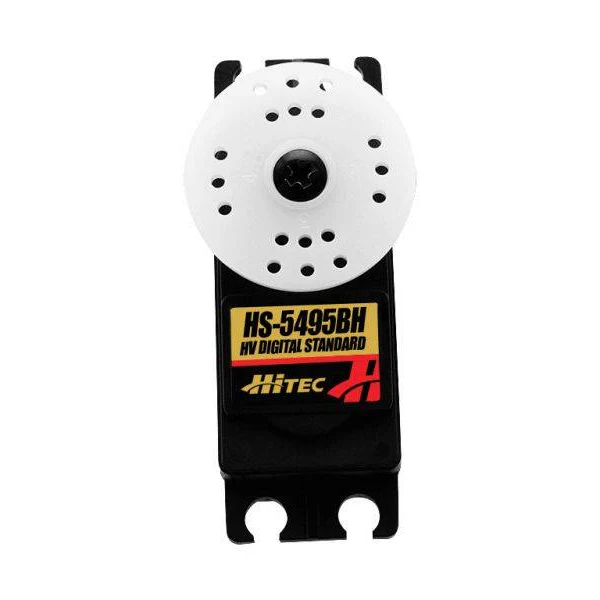

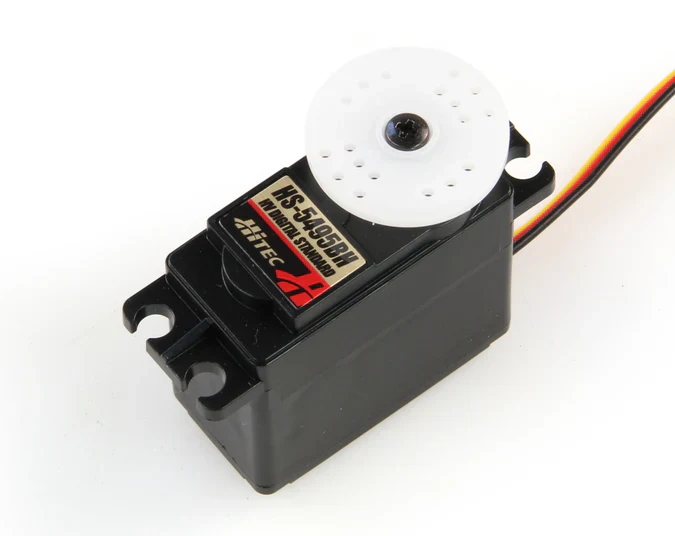

Hitec HS5495BH Standard Digital Cored Servo 45g 7.5kg/0.15s 6.0V - 7.4V 2217590

Hitec HS-5495BH Standard Digital Cored Servo 45g 7.5kg/0.15s 6.0V - 7.4V 2217590

At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5495BH digital sport servo. Based on the popular HS-5485HB, the HS-5495BH's heavy-duty Karbonite gears are the perfect match for sport airplanes up to 25% scale weighing under 12 pounds. With 7.4 volt, 2-cell LiPo battery capability, The HS-5495BH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec.

The upgraded version of this servo is now available : D485HW

Features:

• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point

Programmable Features Include:

• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point

Specifications:

Performance Specifications:
Operating Voltage Range (Volts DC)	6.0V ~ 7.4V
Speed (Second @ 60°)	0.17 ~ 0.157
Maximum Torque Range oz. / in.	89 ~ 104
Maximum Torque Range kg. / cm.	6.4 ~ 7.5
Current Draw at Idle	12 mA
No Load Operating Current Draw	190 mA
Stall Current Draw	1,400 mA
Dead Band Width	4 µs



Physical Specifications:

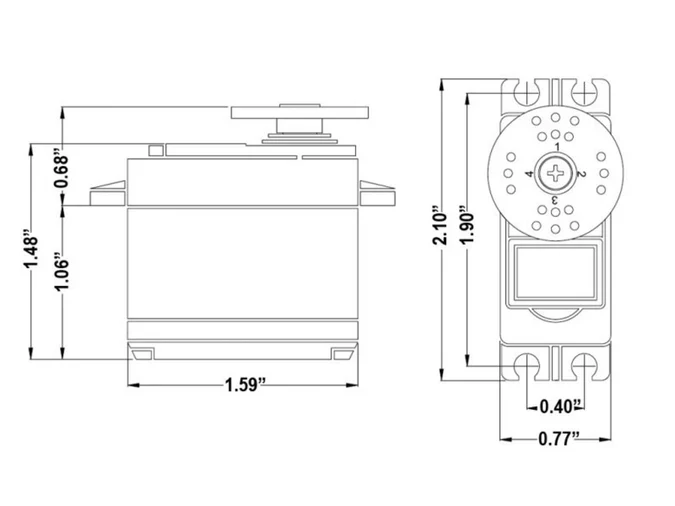

Dimensions (Inches)	1.57 x 0.78 x 1.49

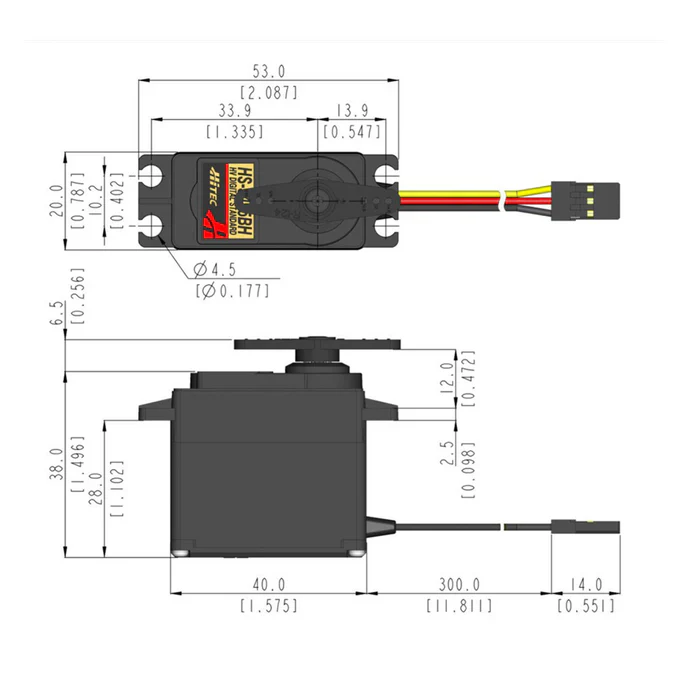

Dimensions (Metric)	39.8 x 19.8 x 38.0
Weight (Ounces)	1.59
Weight (Gram)	45.0
Circuit Type	G1 Programable Digital
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Karbonite
Bearing Type	Top Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	25 / 40
