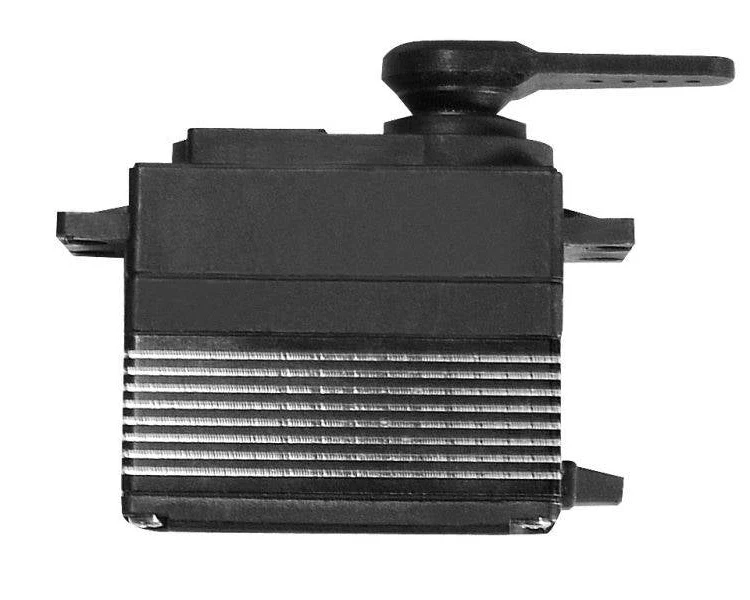

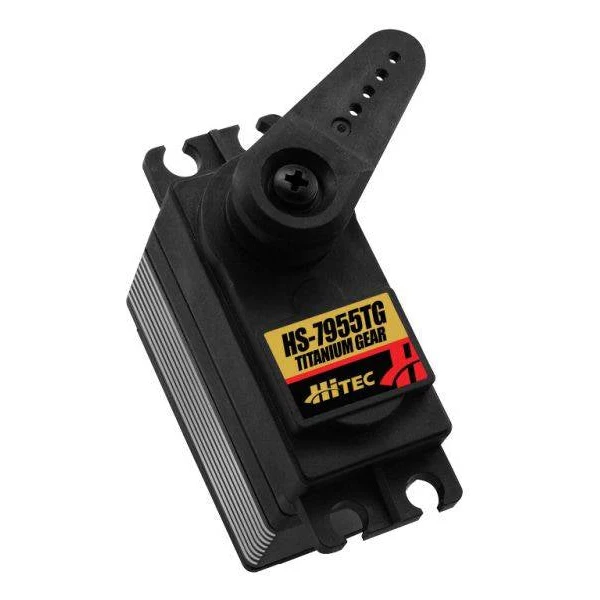

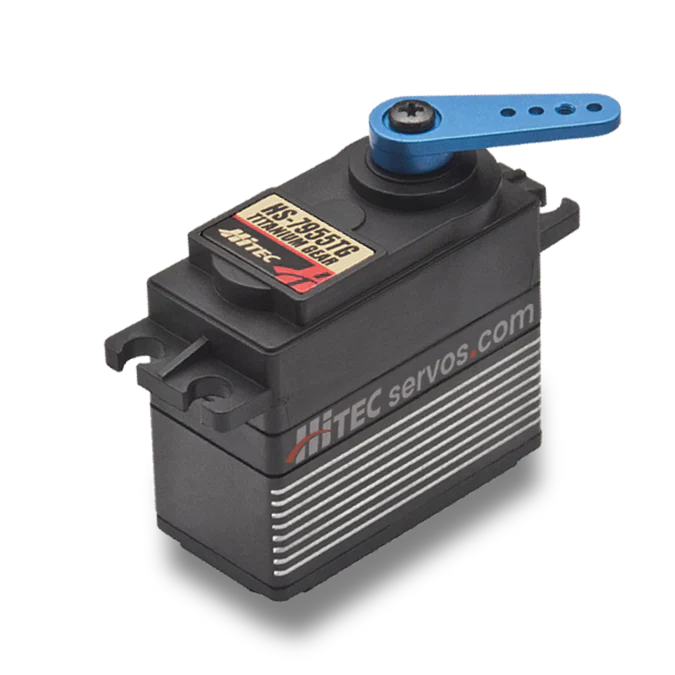

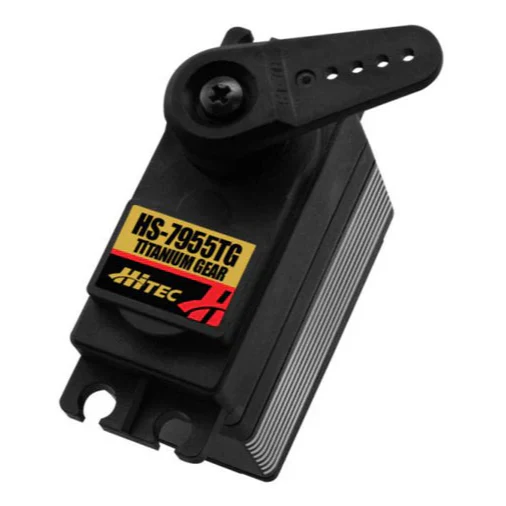

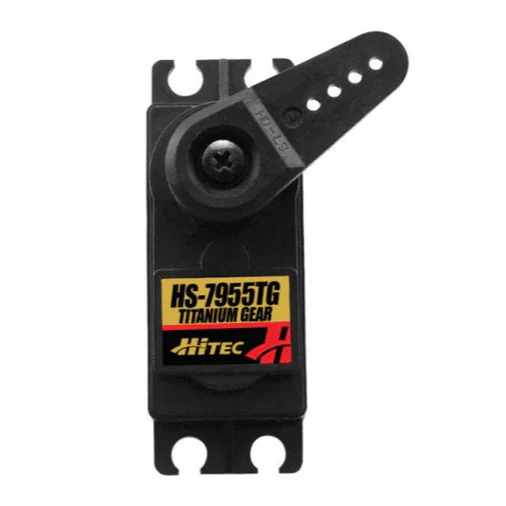

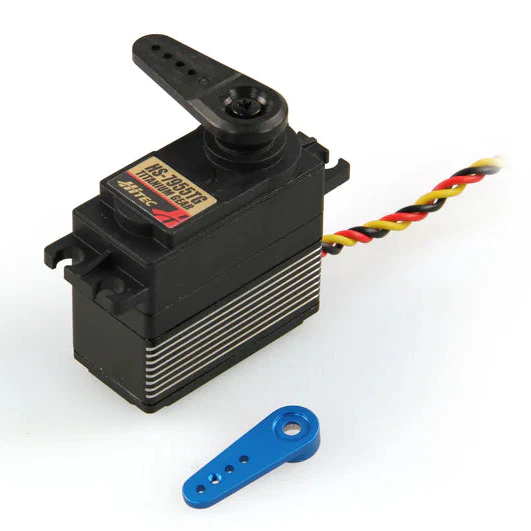

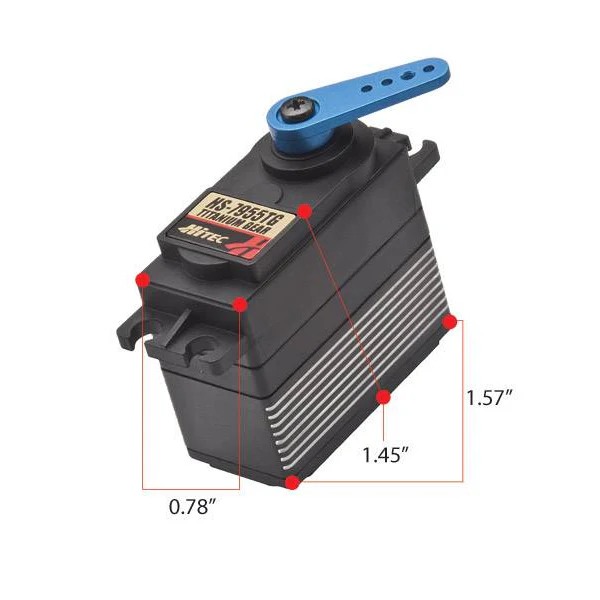

Hitec HS7955TG Standard Digital Coreless Servo 65g 24kg/0.15s 4.8V - 6.0V 2218510

Hitec HS-7955TG Standard Digital Coreless Servo 65g 24kg/0.15s 4.8V - 6.0V 2218510

Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.

Features:

• G2 Digital Circuit
• Coreless Motor
• Dual Ball Bearing Supported Output Shaft
• Titanium Gear Train (MK first gear)
• Spline: 24 Tooth

Programming Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Programmable Features Include:

• - Dead Band Width
• - Direction of Rotation
• - Speed of Rotation (slower)
• - End Points
• - Neutral Points
• - Fail Safe On/Off
• - Fail Safe Point
• - Resolution* (default is high resolution)
• - Overload Protection
• * (default is off) *These features are only programmable with the HFP-20 field programmer.

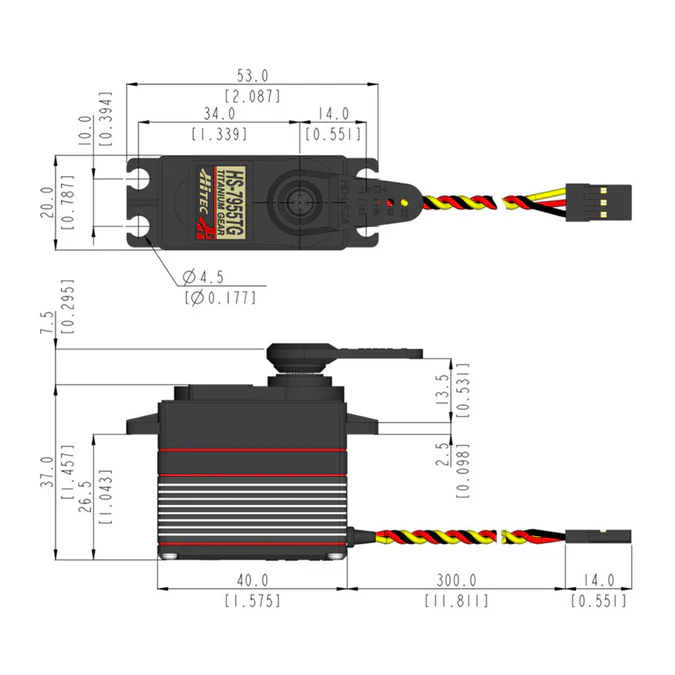

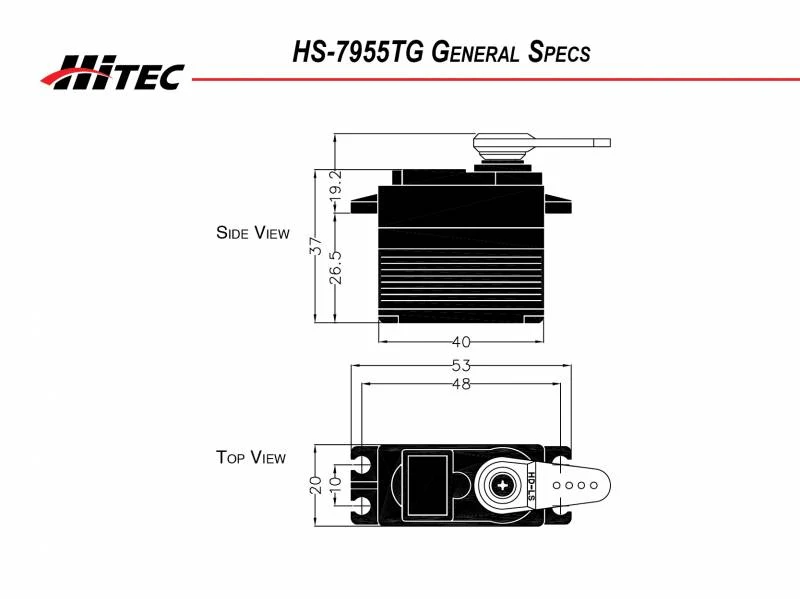

Specifications:
