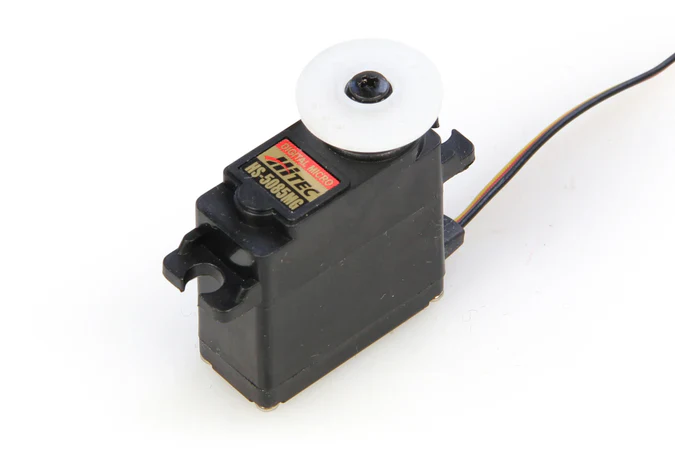

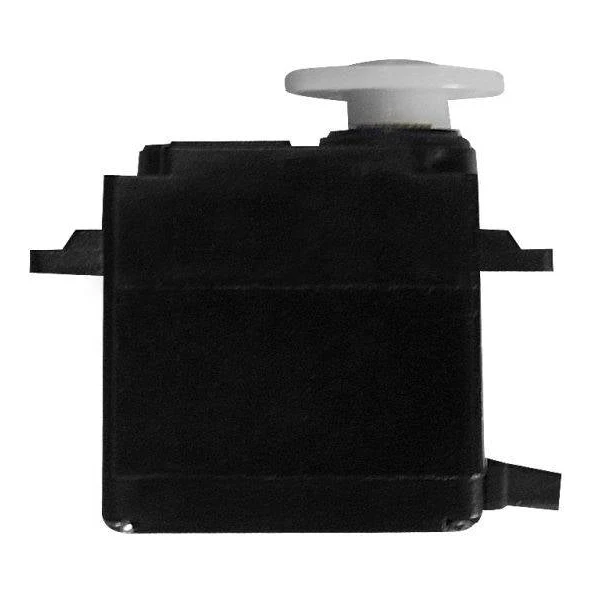

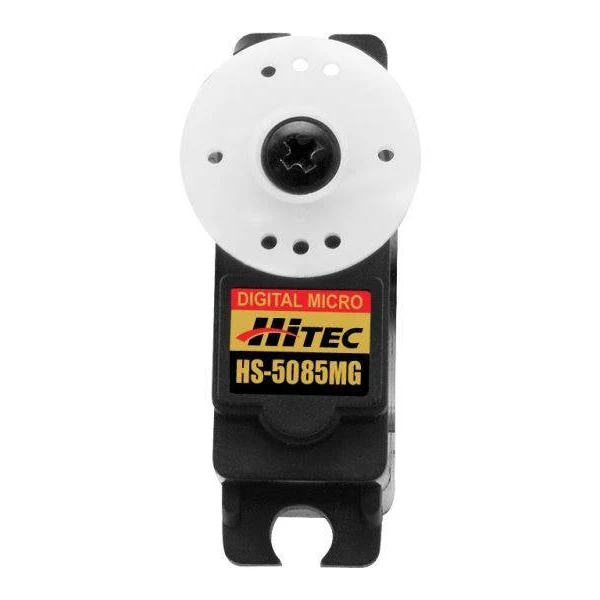

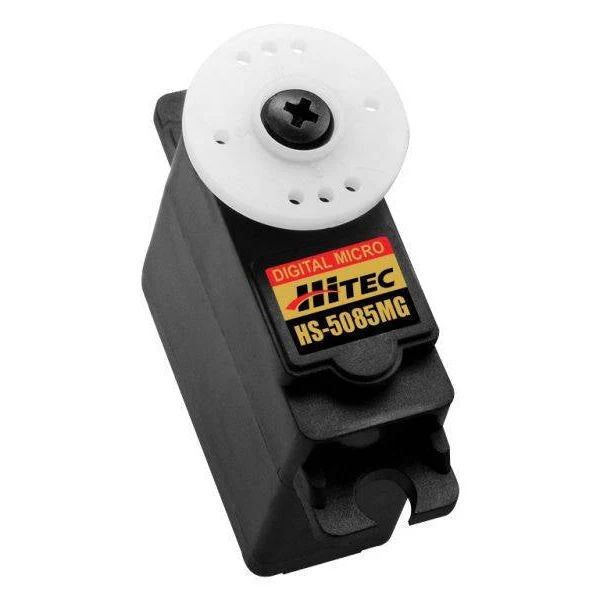

Hitec HS5085MG Micro Digital Cored Servo 21.9g 4.3kg/0.13s 4.8V - 6.0V 2216550

Hitec HS-5085MG Micro Digital Cored Servo 21.9g 4.3kg/0.13s 4.8V - 6.0V 2216550

A digital version of one of Hitec’s most popular micro servos the HS-5085MG offers excellent centring, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.

Features:

• Standard Servo Performance from a Micro Servo
• Rugged Metal Gears
• Ball Bearing-Supported Output Shaft
• Standard Programmable Digital Circuit
• Stronger Holding Power than the Analog Version
• High performance digital amplifier.
• Lightweight metal gears with ball bearing.
• Spline: Standard 24 Tooth

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Specifications:

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.17 ~ 0.13
Maximum Torque Range oz. / in.	50 ~ 60
Maximum Torque Range kg. / cm.	3.6 ~ 4.3
Current Draw at Idle	3 mA
No Load Operating Current Draw	290 mA
Stall Current Draw	2150 mA
Dead Band Width	2 µs



Physical Specifications
Dimensions (Inches)	1.14 x 0.51 x 1.18
Dimensions (Metric)	29.0 x 13.0 x 30.0
Weight (Ounces)	0.77
Weight (Gram)	21.9
Circuit Type	G1 Programable Digital
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Top Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	28 / 20
