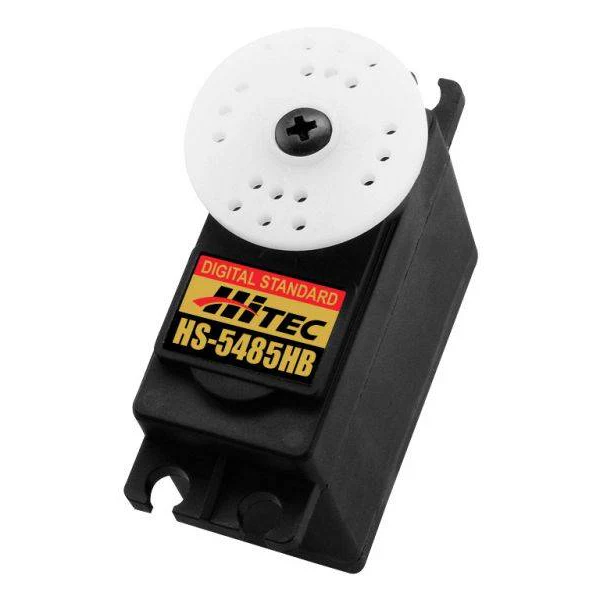

Hitec HS-5485HB Standard Digital Cored Servo 45g 6.4kg/0.17s 4.8V - 6.0V 2217580
The HS-5485HB is Hitec's lowest price digital servo and is an excellent choice for sport airplanes up to .60 size. Featuring a programmable digital circuit and our Karboniteâ„¢ gear technology that offers four times the strength as our standard nylon gears and after hundreds of thousands of cycles won't show any signs of wear.Â
Applications:Â Heli's and Aircraft up to 72" or up to 12lbs when using just one servo per control surface.
Note:Â Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
Warning:Â Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
Features:
- Our Most Economical Standard Size Digital Servo
- Powerful Three-Pole Fettite Motor
- High Impact Karbonite Gears
- Top Ball Bearings
- Standard Performance Digital Circuit for Precise Centring and Holding Power
- Spline: 24 Tooth
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Specifications:
| Performance Specifications: | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.20 ~ 0.17 |
| Maximum Torque Range oz. / in. | 72Â ~Â 89 |
| Maximum Torque Range kg. / cm. | 5.2Â ~Â 6.4 |
| Current Draw at Idle | 10Â mA |
| No Load Operating Current Draw | 170Â mA |
| Stall Current Draw | 1,200 mA |
| Dead Band Width | 4 µs |
Â
| Physical Specifications: | |
| Dimensions (Inches) | 1.57 x 0.78 x 1.49 |
| Dimensions (Metric) | 39.8 x 19.8 x 38.0 |
| Weight (Ounces) | 1.59 |
| Weight (Gram) | 45.0 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Karbonite |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
