Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V
HomeStore

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V

$55.55
Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V—
$55.55

The Story

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg 0.17s 4.8V - 7.4V FUT05102732-3

Digital coreless standard servo for aircraft. Supports S.BUS2

FUTABA is expanding the Air series with a classic 20 mm servo. With a maximum actuating force of 11kg, the S-A300 is particularly predestined for use in demanding fixed-wing models. The construction of the S-A300 Air is based on the high-performance servo S-A700 Air. Thanks to the use of a coreless motor and adjusted performance values, the S-A300 is much cheaper in price.

 Specifications:

  • Operating voltage: 4.8 - 8.4 V.
  • Adjustment speed 0.17sec/60° (7.4V) / 0.19sec/60° (6.6V)
  • Actuating torque 11.0 kgf cm (7.4V) / 10.0kgf cm (6.6V)
  • Control frequency: 50 300 Hz
  • Dimensions: 40x20x38.1 mm
  • Weight: 47 g
  • Spline: 25 Tooth

What's in the Box:

  • S-A300 Standard Digital Servo
  • Horns
  • Mounting Hardware

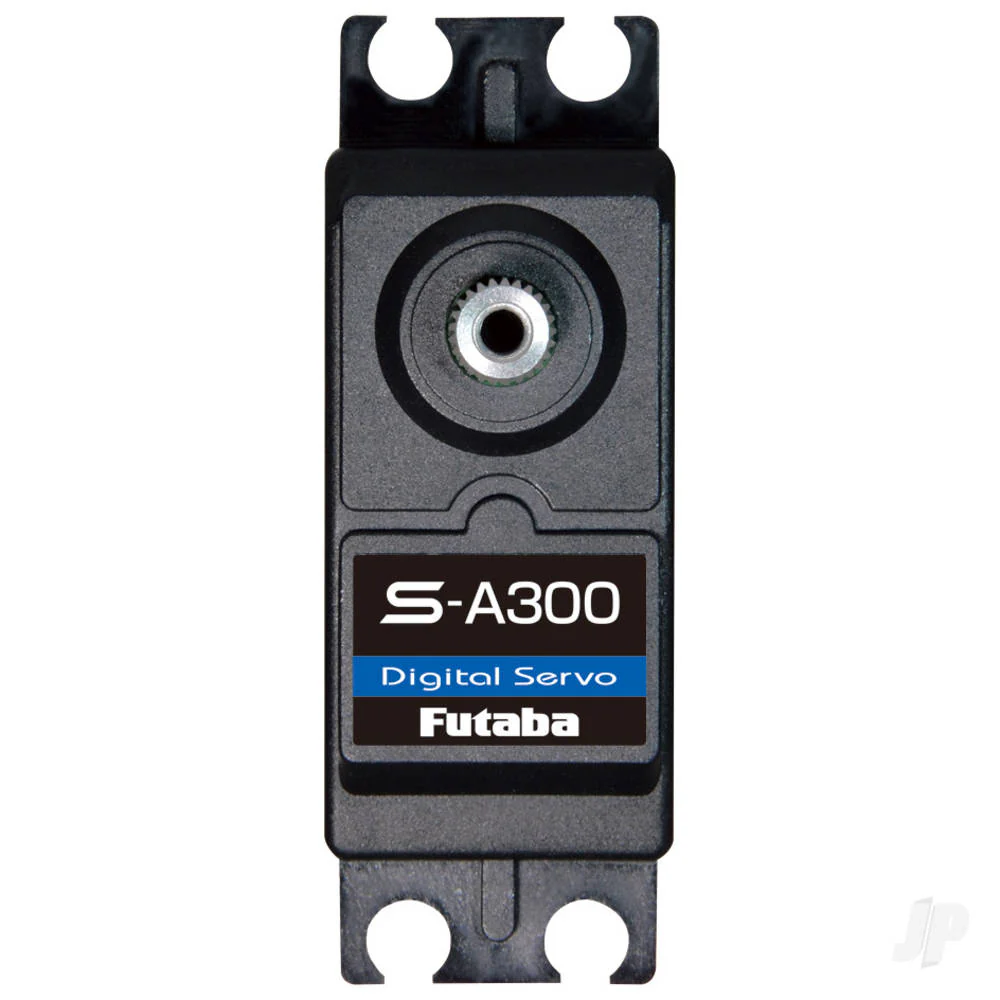

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

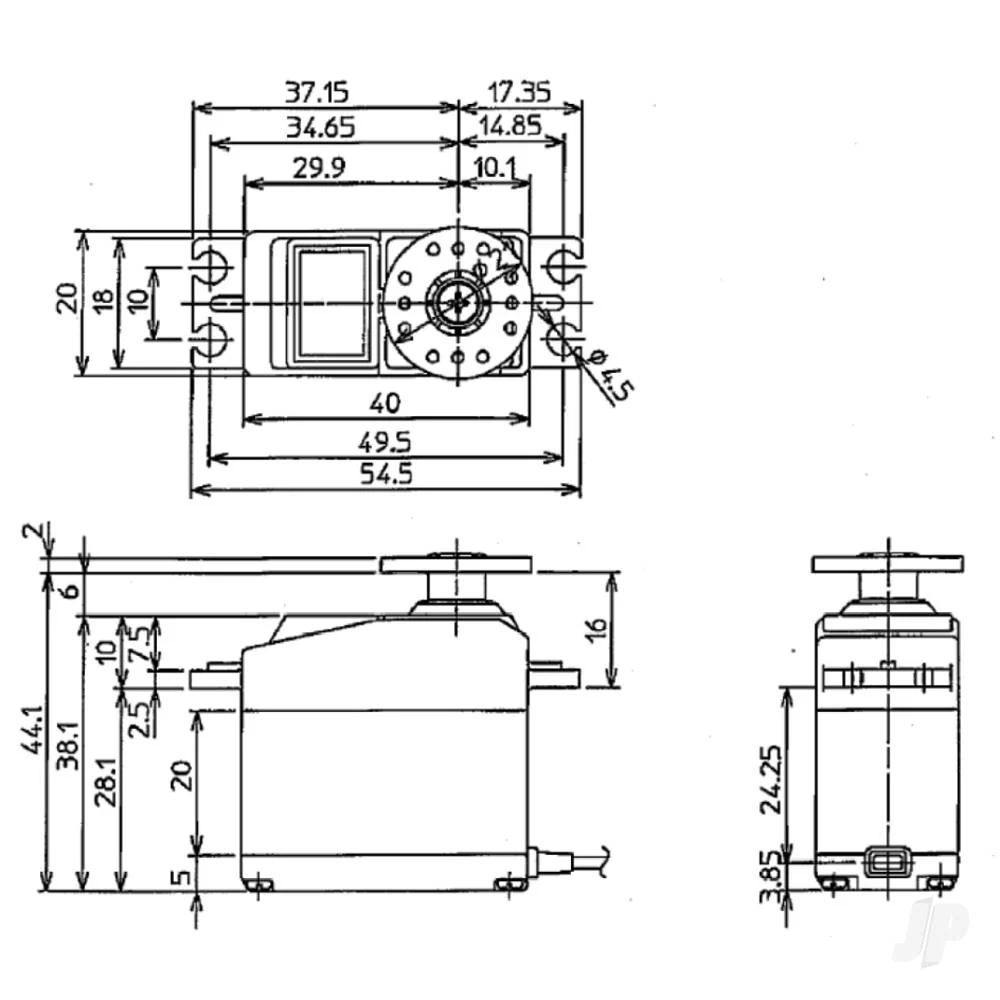

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

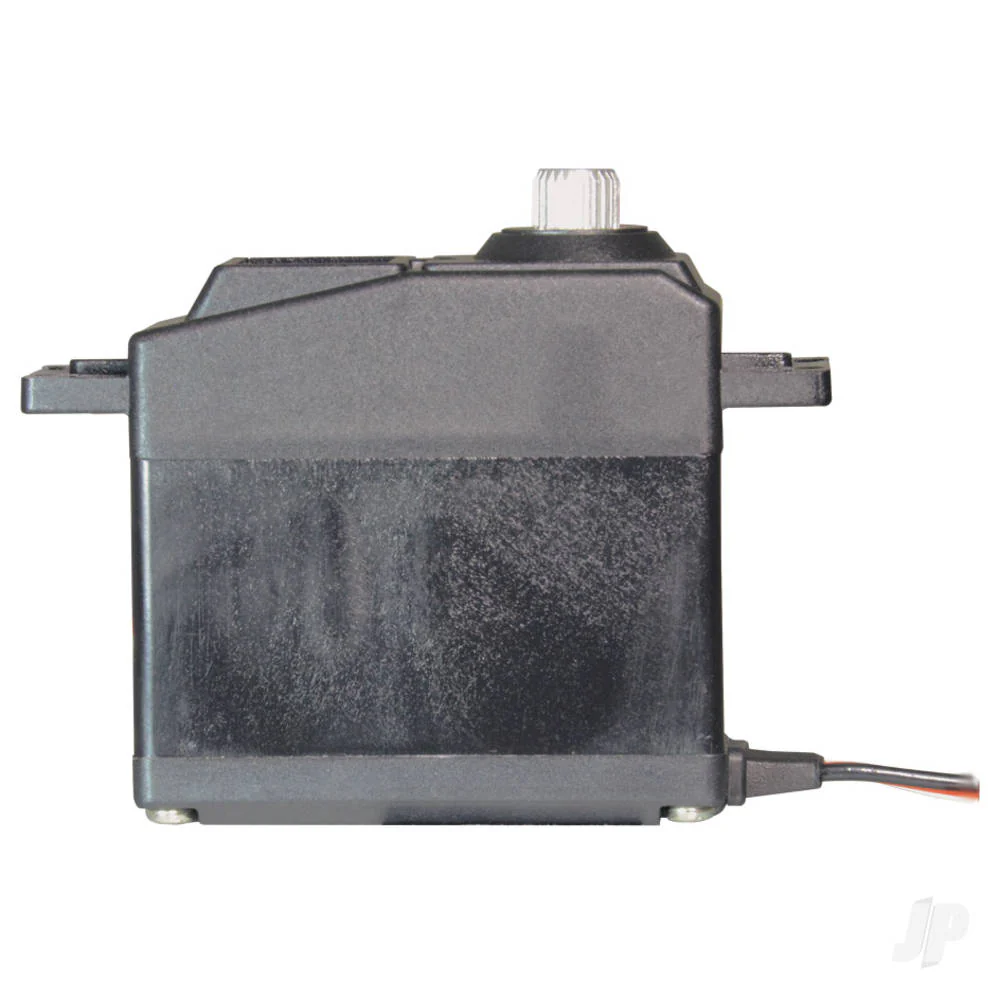

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

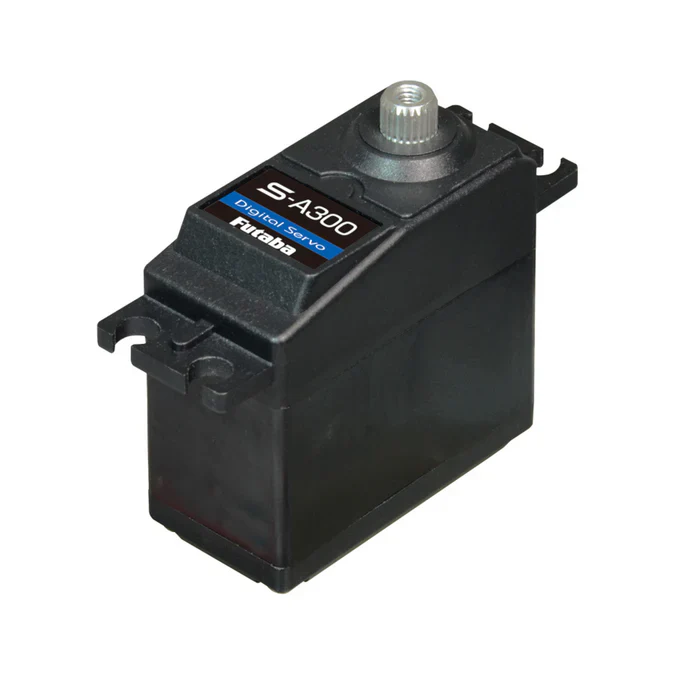

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg/0.17s 4.8V - 7.4V - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg 0.17s 4.8V - 7.4V FUT05102732-3

Digital coreless standard servo for aircraft. Supports S.BUS2

FUTABA is expanding the Air series with a classic 20 mm servo. With a maximum actuating force of 11kg, the S-A300 is particularly predestined for use in demanding fixed-wing models. The construction of the S-A300 Air is based on the high-performance servo S-A700 Air. Thanks to the use of a coreless motor and adjusted performance values, the S-A300 is much cheaper in price.

 Specifications:

  • Operating voltage: 4.8 - 8.4 V.
  • Adjustment speed 0.17sec/60° (7.4V) / 0.19sec/60° (6.6V)
  • Actuating torque 11.0 kgf cm (7.4V) / 10.0kgf cm (6.6V)
  • Control frequency: 50 300 Hz
  • Dimensions: 40x20x38.1 mm
  • Weight: 47 g
  • Spline: 25 Tooth

What's in the Box:

  • S-A300 Standard Digital Servo
  • Horns
  • Mounting Hardware
