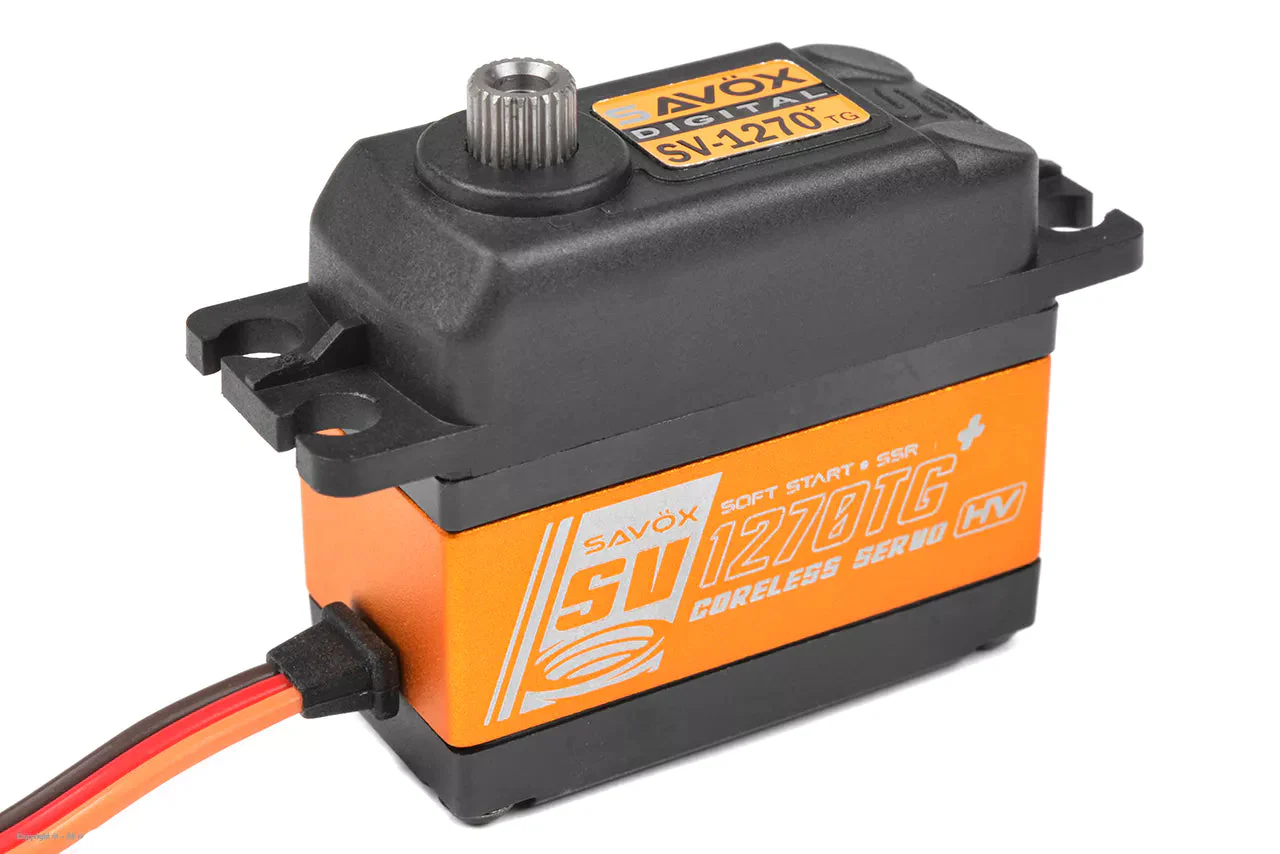

Savox SV-1270TG+ High Voltage Coreless Digital Servo With Soft Start 0.10s/45kg@8.4v SV1270TGP

Savox SV-1270TG+ High Voltage Coreless Digital Servo With Soft Start 0.10s/45kg@8.4v SV1270TGP

The Savox SV-1270TG Plus Digital High Voltage "Monster Torque" Titanium Gear Servo is built to handle extreme requirements, with a great combination of speed and high torque. It's a fantastic choice for 1/8 applications.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:
Super strong, precision made titanium gears provide durability that will survive heavy use.
Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
The servo that racers desire.

Specifications:
Torque @ 7.4v - 40.0kg/555.5oz-in
Torque @ 8.4v - 45.0kg/624.9oz-in
Speed @ 7.4v - 0.11 sec/60 deg
Speed @ 8.4v - 0.10 sec/60 deg

Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
